DPA-2006A | 2006A TWIN DIAPHRAGM OMNI MIC

  • MAP: $1,260.00 / EA
  • List Price: $1,260.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

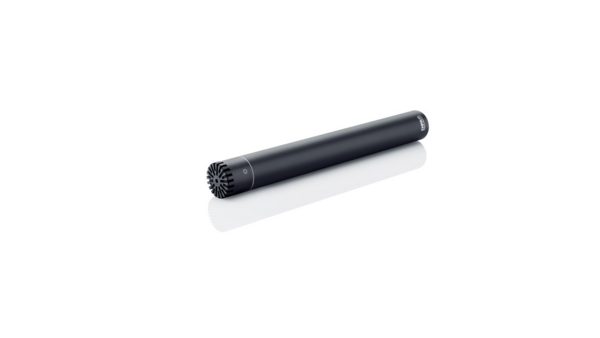

2006A TWIN DIAPHRAGM OMNI MIC
Click image to enlarge

DPA-2006A
2006A TWIN DIAPHRAGM OMNI MIC

  • UM : EA

Our unique Twin Diaphragm Omni Mic Capsule is at the heart of these amazing microphones. This capsule gives the mic a distinctive, well-balanced sound and bridges the gap between the extreme sound quality of DPA's pencil microphones and DPA's well-known lapel microphones.

Features:

  • Acoustic authenticity
  • Linear throughout a large frequency bandwidth
  • Twin-diaphragm capsule technology
  • Modular flexibility
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser, Twin Diaphragm Capsule
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 28 dB (max. 30 dB)
Distortion, THD < 1%127 dB SPL RMS, 130 dB SPL peak
Dynamic rangeTyp. 114 dB
Max. SPL, THD 10%146 dB SPL peak
Switchable volume control, filters etc.0 dB / -20 dB
Rated output impedance200 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 60 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Microphone length164 mm (6.5 in)
Maximum output voltage, RMS8 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Sensitivity selection tolerance (at 1 kHz)±1.5 dB
