DPA-2011ER | 2011ER TWIN DIAPHRAGM CARDIOID MIC, REAR CABLE, XLR

  • MAP: $1,270.00 / EA
  • List Price: $1,270.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

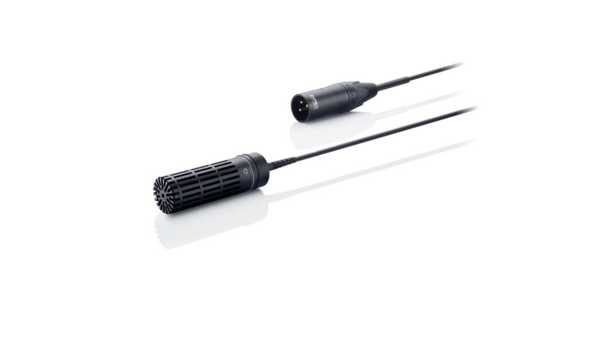

2011ER TWIN DIAPHRAGM CARDIOID MIC, REAR CABLE, XLR
Click image to enlarge

DPA-2011ER
2011ER TWIN DIAPHRAGM CARDIOID MIC, REAR CABLE, XLR

  • UM : EA

The 2011 Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of DPA's pencil microphones and DPA's well-known lapel microphones.

Features:

  • Blends clarity, richness and dynamics
  • Twin diaphragm capsule technology
  • Advanced interference tube technology
  • Superb stage separation and level control
  • Modular flexibility
Directional patternCardioid
Principle of operationPressure gradient, with interference tube
Cartridge typePre-polarized condenser, Twin Diaphragm Capsule
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in)50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 33 dB (max. 36 dB)
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption3.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Microphone length51 mm (2.0 in)
Maximum output voltage, RMS2.2 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Sensitivity selection tolerance (at 1 kHz)±1.5 dB
