DPA-2015 | 2015 COMPACT WIDE CARDIOID MIC

  • MAP: $895.00 / EA
  • List Price: $895.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

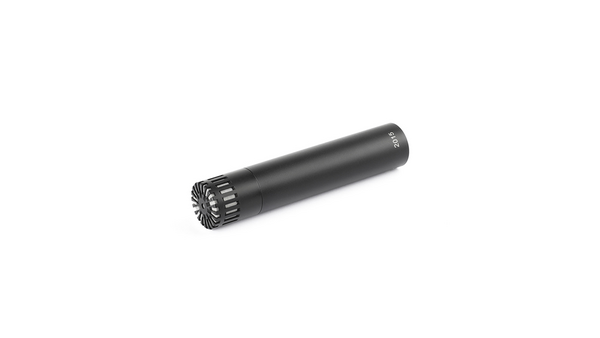

2015 COMPACT WIDE CARDIOID MIC
Click image to enlarge

DPA-2015
2015 COMPACT WIDE CARDIOID MIC

  • UM : EA

The 2015 Wide Cardioid Microphone’s wider pick-up pattern offers an innovative way to pick-up the spacious and natural sound of the total drum kit or other instrument group. Its compact design, combined with its wide pickup area makes it an unobtrusive solution for live stage placement.

Features:

  • Durable, reinforced construction; uniform wide cardioid directionality; spacious sound due to a wide cardioid pick-up pattern; natural and precise sound reproduction; compact design for unobtrusive placement on stage
Directional patternWide cardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz to 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz12 mV/Pa
Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Distortion, THD < 1%147 dB SPL, 150 dB SPL peak
Dynamic rangeTyp. 132 dB
Max. SPL, THD 10%153 dB SPL peak
Rated output impedance60 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 60 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption0.7 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorBlack
Microphone diameter19 mm (0.75 in)
Capsule diameter17 mm (0.67 in)
Microphone length94 mm (3.7 in)
Maximum output voltage, RMS8.7 V (21 dBu)
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
