DPA-2028-B-B01 | 2028 SUPERCARDIOID VOCAL MIC, WIRED DPA HANDLE, BLACK

  • MAP: $665.00 / EA
  • List Price: $665.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
2028 SUPERCARDIOID VOCAL MIC, WIRED DPA HANDLE, BLACK

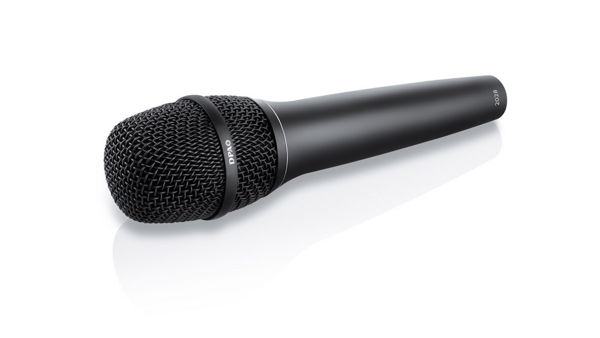

Click image to enlarge

DPA-2028-B-B01
2028 SUPERCARDIOID VOCAL MIC, WIRED DPA HANDLE, BLACK

  • UM : EA

The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Just plug it in and hear the vocals shine like never before. This handheld mic has a wired XLR termination.

Features:

  • Renowned dpa sound
  • Natural vocals – from folk to metal
  • Reduces feedback issues
  • Rugged enough for the live stage
  • Uniform supercardioid directionality
  • Extreme spl handling
Directional patternSupercardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in)100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz25 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 22 dB(A) re. 20 µPa (max. 23 dB(A))
Distortion, THD < 0.5%143 dB SPL RMS, 146 dB SPL peak
Distortion, THD < 1%144 dB SPL RMS, 147 dB SPL peak
Dynamic rangeTyp. 117 dB
Max. SPL, THD 10%160 dB SPL peak
Rated output impedance150 Ω
Minimum load impedance1 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 50 dB at 1 kHz
Power supply (for full performance)P48 (Phantom Power)
Current consumptionMax 2.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter48 mm (1.9 in)
Capsule diameter19 mm (0.75 in)
Microphone length188 mm (7.4 in)
Maximum output voltage, RMS9 Vrms; 19 dBV; 28 dBu
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90 %
