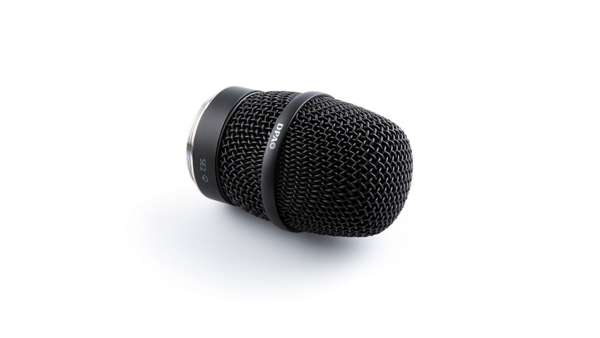

DPA-2028-B-SE2 | 2028 SUPERCARDIOID VOCAL MIC, SE2 ADAPTER (SENNHEISER 2000/6000/9000/EVOLUTION/D1), BLACK
DPA-2028-B-SE2
2028 SUPERCARDIOID VOCAL MIC, SE2 ADAPTER (SENNHEISER 2000/6000/9000/EVOLUTION/D1), BLACK
Click image to enlarge
DPA-2028-B-SE2
2028 SUPERCARDIOID VOCAL MIC, SE2 ADAPTER (SENNHEISER 2000/6000/9000/EVOLUTION/D1), BLACK
- UM : EA
The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Just plug it in and hear the vocals shine like never before. This handheld mic has an adapter that fits Sennheiser 2000/6000/9000/evolution/D1 wireless systems.
Features:
- Renowned dpa sound
- Natural vocals – from folk to metal
- Reduces feedback issues
- Rugged enough for the live stage
- Uniform supercardioid directionality
- Extreme spl handling
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 12 cm (4.7 in) | 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 5 mV/Pa; -46 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A)) |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 117 dB |
| Max. SPL, THD 10% | 160 dB SPL peak |
| Rated output impedance | 150 Ω |
| Minimum load impedance | 1 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with powered Drive |
| Common mode rejection ratio (CMRR) | > 50 dB at 1 kHz |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | Max 2.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Microphone diameter | 48 mm (1.9 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 188 mm (7.4 in) |
| Maximum output voltage, RMS | 9 Vrms; 19 dBV; 28 dBu |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90 % |
×
