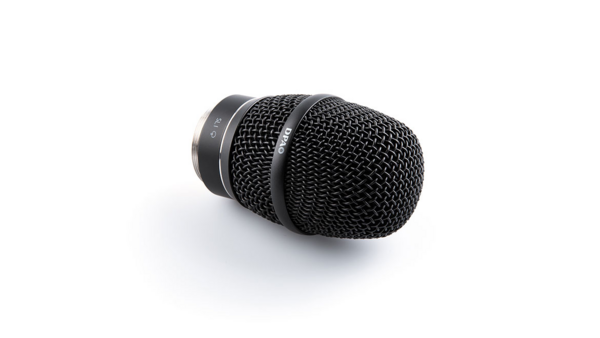

DPA-2028-B-SL1 | 2028 SUPERCARDIOID VOCAL MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS), BLACK
DPA-2028-B-SL1
2028 SUPERCARDIOID VOCAL MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS), BLACK
Click image to enlarge
DPA-2028-B-SL1
2028 SUPERCARDIOID VOCAL MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS), BLACK
- UM : EA
The 2028 Vocal Microphone is designed for the unique challenges of live stage performances. It is a flexible handheld vocal mic, which provides transparent, fantastic vocals to performers from a wide range of markets including live, HoW, broadcast, etc. Just plug it in and hear the vocals shine like never before. This handheld mic has an adapter that fits Shure/Sony/Lectrosonics wireless systems.
Features:
- Renowned dpa sound
- Natural vocals – from folk to metal
- Reduces feedback issues
- Rugged enough for the live stage
- Uniform supercardioid directionality
- Extreme spl handling
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 12 cm (4.7 in) | 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 5 mV/Pa; -46 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A)) |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 117 dB |
| Max. SPL, THD 10% | 160 dB SPL peak |
| Rated output impedance | 150 Ω |
| Minimum load impedance | 1 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with powered Drive |
| Common mode rejection ratio (CMRR) | > 50 dB at 1 kHz |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | Max 2.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Microphone diameter | 48 mm (1.9 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | 188 mm (7.4 in) |
| Maximum output voltage, RMS | 9 Vrms; 19 dBV; 28 dBu |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90 % |
×
