DPA-2061-OL-C-B03-ACC | 2061 OMNI MIC WITH ACC, LOUD SPL, BLACK, 3-PIN LEMO

  • MAP: $460.00 / EA
  • List Price: $460.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

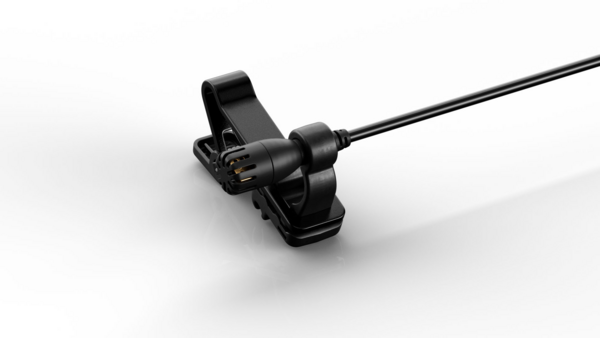

2061 OMNI MIC WITH ACC, LOUD SPL, BLACK, 3-PIN LEMO
Click image to enlarge

DPA-2061-OL-C-B03-ACC
2061 OMNI MIC WITH ACC, LOUD SPL, BLACK, 3-PIN LEMO

  • UM : EA

The 2061 Miniature Omnidirectional Microphone picks up natural and lifelike sound. It is designed to accurately capture the human voice, with a high level of fidelity and intelligibility and minimal coloration.  In addition to amazing speech intelligibility, the 2061 has a durable mechanical construction with good sweat-repellent and water-resistant capabilities.

Features:

  • Best-in-class speech intelligibility based on clear, natural dpa sound
  • Robust mechanical construction for long-lasting performance
  • Fast, secure mounting with included clip (black and white variants)
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±3 dB50 Hz - 16 kHz , 3 dB soft boost at 8 - 16 kHz
Sensitivity, nominal, ±3 dB at 1 kHz26 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa
Distortion, THD < 0.5%120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1%125 dB SPL RMS, 128 dB SPL peak
Dynamic rangeTyp. 102 dB
Max. SPL, THD 10%137 dB SPL peak
Rated output impedance112 Ω
Minimum load impedance5 kΩ
Power supply (for full performance)For wireless systems min. 5 V - max 10 V
Current consumptionTyp. 0.6 mA
Connector3-pin LEMO
ColorBlack
Microphone diameter5.5 mm (0.22 in)
Microphone length9,7 mm (0.38 in)
Cable length1,5 m (4.9 ft)
Cable colorBlack
Cable diameter1.6 mm (0.06 in)
Maximum output voltage, RMS1,6V
Polarity'+V at output for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90 %
