DPA-2061-OL-C-W34-ACC | 2061 OMNI MIC WITH ACC, LOUD SPL, WHITE, MINI-JACK

DPA-2061-OL-C-W34-ACC
2061 OMNI MIC WITH ACC, LOUD SPL, WHITE, MINI-JACK

MAP: $460.00 / EA
List Price: $460.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-2061-OL-C-W34-ACC
2061 OMNI MIC WITH ACC, LOUD SPL, WHITE, MINI-JACK

UM : EA

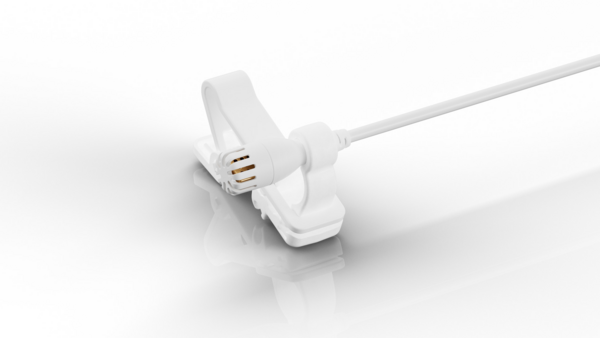

The 2061 Miniature Omnidirectional Microphone picks up natural and lifelike sound. It is designed to accurately capture the human voice, with a high level of fidelity and intelligibility and minimal coloration. In addition to amazing speech intelligibility, the 2061 has a durable mechanical construction with good sweat-repellent and water-resistant capabilities.

Features:

Best-in-class speech intelligibility based on clear, natural dpa sound
Robust mechanical construction for long-lasting performance
Fast, secure mounting with included clip (black and white variants)

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±3 dB	50 Hz - 16 kHz , 3 dB soft boost at 8 - 16 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa
Distortion, THD < 0.5%	120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1%	125 dB SPL RMS, 128 dB SPL peak
Dynamic range	Typ. 102 dB
Max. SPL, THD 10%	137 dB SPL peak
Rated output impedance	112 Ω
Minimum load impedance	5 kΩ
Power supply (for full performance)	For wireless systems min. 5 V - max 10 V
Current consumption	Typ. 0.6 mA
Connector	Mini-Jack
Color	White
Microphone diameter	5.5 mm (0.22 in)
Microphone length	9,7 mm (0.38 in)
Cable length	1,5 m (4.9 ft)
Cable color	White
Cable diameter	1.6 mm (0.06 in)
Maximum output voltage, RMS	1,6V
Polarity	'+V at output for positive sound pressure
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90 %
