DPA-3506A | 4006A STEREO KIT

DPA-3506A
4006A STEREO KIT

MAP: $8,670.00 / EA
List Price: $8,670.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-3506A
4006A STEREO KIT

UM : EA

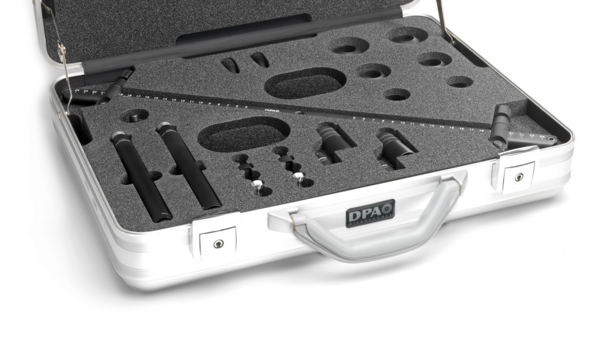

A complete stereo kit with two carefully factory-matched phantom powered 4006A Omnidirectional Condenser Microphones. The kit includes mics, windscreens, boom, holders, clips, and much more.

Features:

Modularity – interchangable capsules and preamplifiers
Up to 120 db dynamic range
Rf rejection between >60 and >40 db
Linear frequency response
High spl
Superior gain before feedback

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	10 Hz - 20 kHz
Effective frequency range ±2 dB	10 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz	36 mV/Pa; -28,9 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 27 dB (max. 29 dB)
Distortion, THD < 1%	133 dB SPL RMS, 136 dB SPL peak
Dynamic range	Typ. 121 dB
Max. SPL, THD 10%	146 dB SPL peak
Switchable volume control, filters etc.	0 dB / -20 dB
Rated output impedance	200 Ω
Minimum load impedance	2 kΩ
Cable drive capability	100 m (328 ft)
Output balance principle	Impedance balancing with powered Drive
Common mode rejection ratio (CMRR)	> 60 dB
Power supply (for full performance)	P48 (Phantom Power)
Current consumption	2.8 mA
Connector	XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color	Matte black
Microphone diameter	16 - 19 mm (0.6 - 0.75 in)
Capsule diameter	16 mm (0.6 in)
Microphone length	170 mm (6.7 in)
Maximum output voltage, RMS	8.0 V
Polarity	+V at pin 2 for positive sound pressure
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90 %
Matching tolerance (frequency response and sensitivity)	±0.5 dB
Phase deviation for kit	< 5°
