DPA-4006ES | 4006ES OMNI MIC, SIDE CABLE, XLR

  • MAP: $2,880.00 / EA
  • List Price: $2,880.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

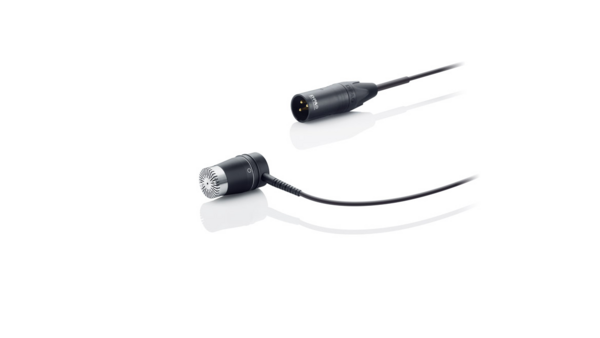

4006ES OMNI MIC, SIDE CABLE, XLR
Click image to enlarge

DPA-4006ES
4006ES OMNI MIC, SIDE CABLE, XLR

  • UM : EA

The 4006 Omni Mic offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).

Features:

  • Acoustic authenticity
  • Linear throughout a large frequency bandwidth
  • Detailed and natural reproduction
  • High sensitivity and low noise floor
  • Excellent for concert halls and spot miking acoustical instruments
  • Modular flexibility
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response10 Hz - 20 kHz
Effective frequency range ±2 dB20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz36 mV/Pa; -28,9 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 27 dB (max. 29 dB)
Distortion, THD < 1%126 dB SPL RMS, 129 dB SPL peak
Dynamic rangeTyp. 114 dB
Max. SPL, THD 10%132 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption3.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter16 - 19 mm (0.6 - 0.75 in)
Capsule diameter16 mm (0.6 in)
Microphone length35 mm (1.38 in)
Maximum output voltage, RMS2.2 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±0.5 dB
Phase deviation for kit< 5°
