DPA-4011-DF-F-B01-120T | 4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, TWIN MIC

  • MAP: $5,275.00 / EA
  • List Price: $5,275.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

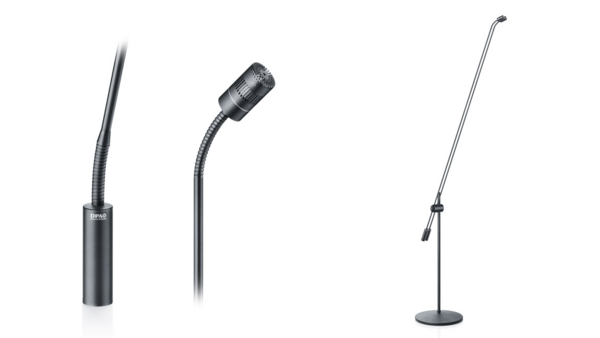

4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, TWIN MIC
Click image to enlarge

DPA-4011-DF-F-B01-120T
4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, TWIN MIC

  • UM : EA

Using the MMC4011 Cardioid Microphone Capsule for its directional quality and attention to detail, this solution makes everything sounds like the original. A complete microphone floor stand solution offering a high-quality stage voice or instrument mic in an elegant and exclusive design.

Features:

  • Low noise and natural voice
  • Highly directional for high isolation
  • Uniform, frequency independent directionality
  • Exclusive, elegant design
  • Integrated shock-mounting in floor base
  • Rapidly stabilizing microphone boom pole
  • Modular flexibility
Directional patternCardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 25 dB
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 121 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption3.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone lengthCapsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
Maximum output voltage, RMS2.2 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±1 dB
Phase deviation for kit< 10°
