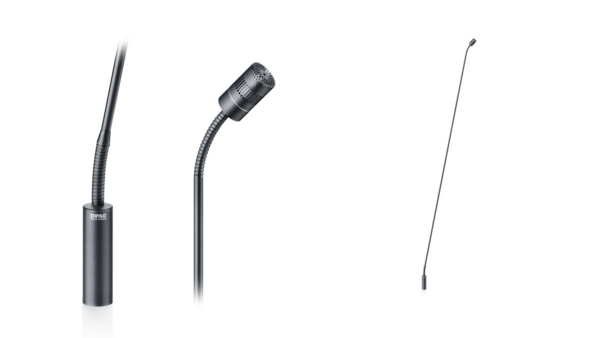

DPA-4011-DF-G-B01-120 | 4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, TOP AND BOTTOM GOOSENECK
DPA-4011-DF-G-B01-120
4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, TOP AND BOTTOM GOOSENECK
Click image to enlarge
DPA-4011-DF-G-B01-120
4011 CARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, TOP AND BOTTOM GOOSENECK
- UM : EA
DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount. They are used at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuances of the spoken word and in a split second deliver the perfect translation. Using the MMC4011 Cardioid Microphone Capsule for its directional quality and attention to detail, this solution makes everything sounds like the original
Features:
- Outstanding audio quality
- Wireless podium mic capability
- Highly directional – very isolated
- High rejection of tuner frequency interference
- Sleek scandinavian design
| Directional pattern | Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz - 20 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 25 dB |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 121 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 3.5 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Matte black |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 19 mm (0.75 in) |
| Microphone length | Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in) |
| Maximum output voltage, RMS | 2.2 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Matching tolerance (frequency response and sensitivity) | ±1 dB |
| Phase deviation for kit | < 10° |
×
