DPA-4015A | 4015A WIDE CARDIOID MIC

  • MAP: $2,285.00 / EA
  • List Price: $2,285.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

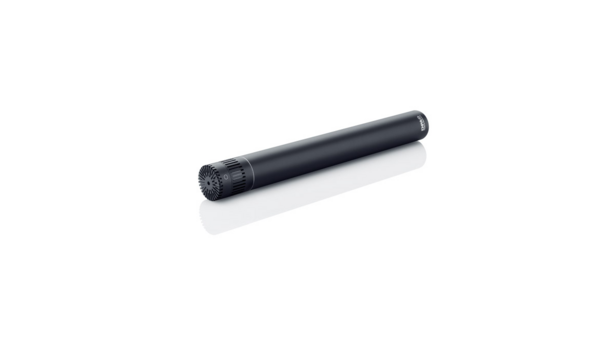

4015A WIDE CARDIOID MIC
Click image to enlarge

DPA-4015A
4015A WIDE CARDIOID MIC

  • UM : EA

This mic is a perfect fill-in between an omnidirectional and a directional microphone. The off-axis characteristics of this mic are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.

Features:

  • Low profile – wide pickup area
  • Natural reproduction
  • Directional ambience pickup
  • Exceptional for vocals
  • Modular flexibility
Directional patternWide cardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 60 cm (23.6 in)40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 25 dB (correct with the volume control in 0 dB or -20 dB setting)
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 121 dB
Max. SPL, THD 10%159 dB SPL peak
Switchable volume control, filters etc.0 dB / -20 dB
Rated output impedance200 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 60 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone length170 mm (6.7 in)
Maximum output voltage, RMS> 5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±1 dB
Phase deviation for kit< 10°
