DPA-4017B | 4017B SHOTGUN MIC

  • MAP: $2,275.00 / EA
  • List Price: $2,275.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

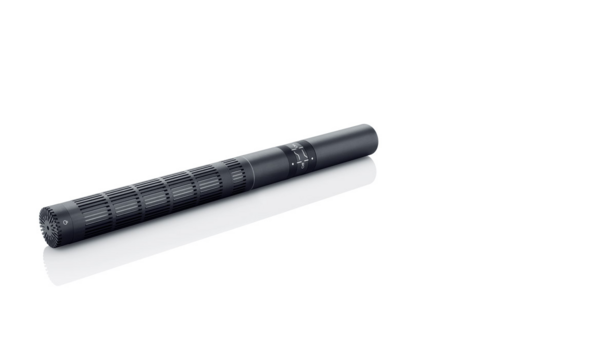

4017B SHOTGUN MIC
Click image to enlarge

DPA-4017B
4017B SHOTGUN MIC

  • UM : EA

Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.

Features:

  • Small and lightweight
  • Excellent rf immunity
  • Highly immune to humidity
  • Uniform off-axis response
  • Highly directional pattern
  • Sleek shotgun for distant miking
  • Integrated powered cable
Directional patternSupercardioid, lobe-shaped
Principle of operationPressure gradient, with interference tube
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz
Effective frequency range, ±2 dB, at 60 cm (23.6 in)70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal, ±2 dB at 1 kHz19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 24 dB (max. 26 dB)
Distortion, THD < 1%134 dB SPL RMS, 137 dB SPL peak
Dynamic rangeTyp. 124 dB
Max. SPL, THD 10%138 dB SPL peak
Switchable volume control, filters etc.High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleSignal balanced
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption4.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone length212 mm (8.3 in)
Maximum output voltage, RMS2.0 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
