DPA-4018-DE-D-B01-005 | 4018 SUPERCARDIOID TABLETOP MIC, 5 CM (2 IN), BLACK, XLR

  • MAP: $2,370.00 / EA
  • List Price: $2,370.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

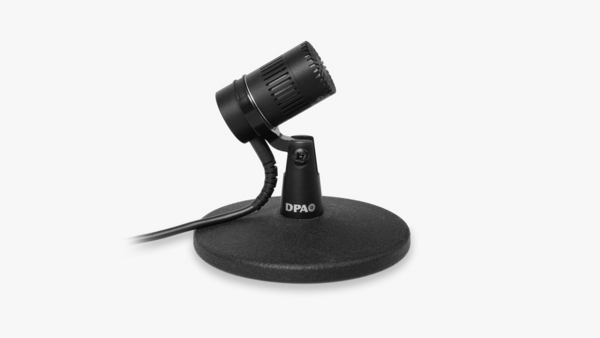

4018 SUPERCARDIOID TABLETOP MIC, 5 CM (2 IN), BLACK, XLR
Click image to enlarge

DPA-4018-DE-D-B01-005
4018 SUPERCARDIOID TABLETOP MIC, 5 CM (2 IN), BLACK, XLR

  • UM : EA

This mic can be used for dialogue, interview and table or spot-recording use. It offers superb expandability through modular accessories and is ideal for unobtrusive or distant miking such as desktop use.

Features:

  • Low noise and high sensitivity
  • Highly directional for high isolation
  • Most controlled supercardioid shape
  • Uniform, frequency independent directionality
  • Unobtrusive desktop mic
  • Modular flexibility
Directional patternSupercardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in)40 Hz - 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 23 dB
Distortion, THD < 1%134 dB SPL RMS, 137 dB SPL peak
Dynamic rangeTyp. 121 dB
Max. SPL, THD 10%142 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing
Common mode rejection ratio (CMRR)> 40 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption3.5 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Capsule diameter19 mm (0.75 in)
Microphone length35 mm (1.38 in)
Maximum output voltage, RMS2.2 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±1 dB
Phase deviation for kit< 10°
