DPA-4018V-B-SL1 | D:FACTO 4018V SOFTBOOST SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK

  • MAP: $1,250.00 / EA
  • List Price: $1,250.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
D:FACTO 4018V SOFTBOOST SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK
Click image to enlarge

DPA-4018V-B-SL1
D:FACTO 4018V SOFTBOOST SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK

  • UM : EA

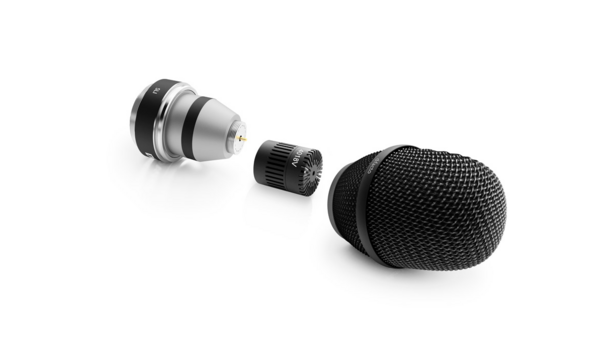

The d:facto series brings true studio sound to the live stage and broadcasting studio. This version has a pre-programmed high-end boost has a 3 dB soft boost at 12 kHz. The modular nature of the d:facto series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Features:

  • Extraordinarily natural sound
  • Perfectly uniform supercardioid directionality
  • High separation
  • Extreme spl handling
  • Low handling noise
  • Sleek design
  • Flexible adapter system fits most professional wireless systems
Directional patternSupercardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in)40 Hz - 16 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz5 mV/Pa; -46 dB re. 1 V/Pa
2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
Equivalent noise level, A-weightedTyp. 19 dB(A) re. 20 µPa (max. 21 dB(A))
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 120 dB
Max. SPL, THD 10%160 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance1 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 50 dB at 1 kHz
Power supply (for full performance)P48 (Phantom Power)
Current consumptionMax 2.0 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter52 mm (2.05 in)
Capsule diameter19 mm (0.75 in)
Microphone length205 mm (8.1 in)
Maximum output voltage, RMS8 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
