DPA-4018VL-B-SL1 | D:FACTO 4018VL LINEAR SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK

  • MAP: $1,250.00 / EA
  • List Price: $1,250.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
D:FACTO 4018VL LINEAR SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK
Click image to enlarge

DPA-4018VL-B-SL1
D:FACTO 4018VL LINEAR SUPERCARDIOID MIC, SL1 ADAPTER (SHURE/SONY/LECTROSONICS/LINE6), BLACK

  • UM : EA

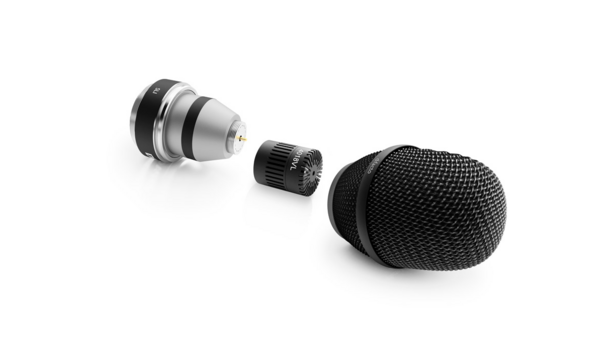

The d:facto series brings true studio sound to the live stage and broadcasting studio. This version is extremely linear, engineered specifically for audio engineers who prefer setting their own unique impression on the final sound. . The modular nature of the d:facto series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Features:

  • Extraordinarily natural sound
  • Perfectly uniform supercardioid directionality
  • High separation
  • Extreme spl handling
  • Low handling noise
  • Sleek design
  • Flexible adapter system fits most professional wireless systems
Directional patternSupercardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in)40 Hz - 16 kHz
Sensitivity, nominal, ±2 dB at 1 kHz5 mV/Pa; -46 dB re. 1 V/Pa
2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
Equivalent noise level, A-weightedTyp. 19 dB(A) re. 20 µPa (max. 21 dB(A))
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 120 dB
Max. SPL, THD 10%160 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance1 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 50 dB at 1 kHz
Power supply (for full performance)P48 (Phantom Power)
Current consumptionMax 2.0 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter52 mm (2.05 in)
Capsule diameter19 mm (0.75 in)
Microphone length205 mm (8.1 in)
Maximum output voltage, RMS8 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
