DPA-4041-SP | 4041-SP Omni Large Diaphragm Mic, P48
DPA-4041-SP
4041-SP Omni Large Diaphragm Mic, P48
Click image to enlarge
DPA-4041-SP
4041-SP Omni Large Diaphragm Mic, P48
- UM : EA

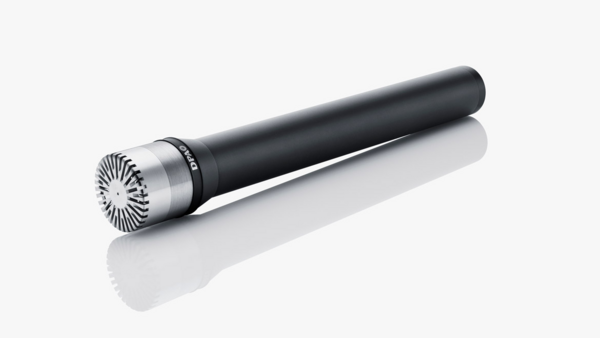

This large diaphragm omnidirectional microphone capsule can be used with the Solid State Phantom Power. The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability.
Features:
- Handles high sound pressure levels with no distortion
- Natural and transparent sound
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Condenser w. stainless steel diaphragm |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | 20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz |
| Sensitivity, nominal, ±2 dB at 250 Hz | 70 mV/Pa; -23 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Max. 8 dB(A) re. 20 µPa |
| Equivalent noise level, ITU-R BS.468-4 | Max. 20 dB |
| Distortion, THD < 1% | 123 dB SPL RMS, 126 dB SPL peak |
| Dynamic range | Typ. 118 dB |
| Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | < 200 Ω |
| Cable drive capability | 100 m (328 ft) |
| Power supply (for full performance) | Via external Power supply |
| Current consumption | 2.20 mA |
| Connector | 3-pin XLR-M |
| Capsule diameter | 24 mm (1 in) |
| Microphone length | 170 mm (6.7 in) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
