DPA-4055 | 4055 KICK-DRUM MICROPHONE

  • MAP: $820.00 / EA
  • List Price: $820.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

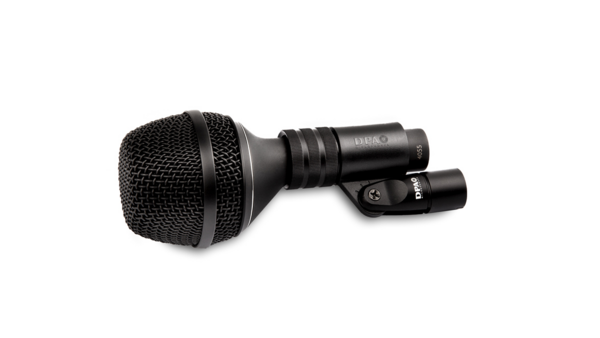

4055 KICK-DRUM MICROPHONE
Click image to enlarge

DPA-4055
4055 KICK-DRUM MICROPHONE

  • UM : EA

The 4055 Kick Drum Mic delivers the renowned DPA sound, clarity and linear frequency response, both on axis and off axis. The mic captures the clear, true sound of a kick drum, whether it is used in classic, jazz, rock or any other genre. Its unique asymmetric design makes it easy to position, both inside and outside the drum. With its large, robust housing, wind damping foam, specially-designed shock mount the mic is ready to perform on any live stage

Features:

  • Exceptional audio quality
Directional patternOpen Cardioid
Principle of operationPressure gradient
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in)40 Hz - 18 kHz with a 6 dB soft boost at 10 kHz
Sensitivity, nominal, ±2 dB at 1 kHz2 mV/Pa; -54 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 27 dB(A) re. 20 µPa (max.29 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 39 dB (max. 41 dB)
Distortion, THD < 1%156dB SPL RMS, 159 dB SPL peak
Dynamic rangeTyp. 132 dB
Max. SPL, THD 10%164 dB SPL peak
Rated output impedance380 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 55 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption2.0 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter57 mm (2,24 in)
Capsule diameter17 mm (0.67 in)
Microphone length132 mm (5,19 in)
Maximum output voltage, RMS9.75 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
