DPA-4060-OP-C-F34 | 4060 CORE+ OMNI MIC, NORMAL SPL, BEIGE, MINI-JACK
DPA-4060-OP-C-F34

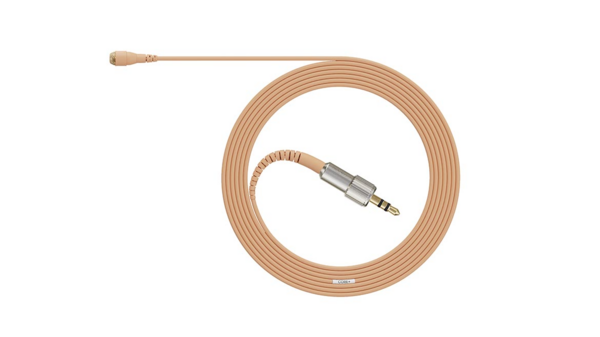

4060 CORE+ OMNI MIC, NORMAL SPL, BEIGE, MINI-JACK
Click image to enlarge
DPA-4060-OP-C-F34
4060 CORE+ OMNI MIC, NORMAL SPL, BEIGE, MINI-JACK
- UM : EA
The 4060 Omni Mic is the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.
Features:
- Exceptional audio quality
- Uniform, consistent sound between dpa mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 0.5% | 128 dB SPL RMS, 131 dB SPL peak |
| Distortion, THD < 1% | 129 dB SPL RMS, 132 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | Mini-Jack |
| Color | Beige |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz) | ±1.5 dB |
×
