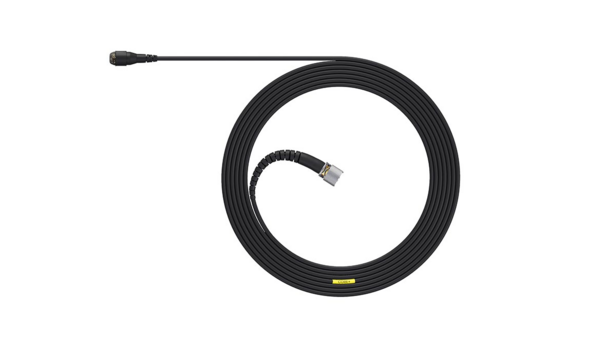

DPA-4062-OP-C-B90 | 4062 CORE+ OMNI MIC, EXTREME SPL, BLACK, MICROLOCK
DPA-4062-OP-C-B90
4062 CORE+ OMNI MIC, EXTREME SPL, BLACK, MICROLOCK
Click image to enlarge
DPA-4062-OP-C-B90
4062 CORE+ OMNI MIC, EXTREME SPL, BLACK, MICROLOCK
- UM : EA
This 4062 Omni Mic is similar to the others in the 4060 Series, but is sensitivity adjusted to match extremely loud sound pressure levels. With the correct power source, the microphone will be able to handle sound pressure levels up to 154 dB before clipping occurs, making it ideal for close-miking drums and brass. The microphone is also the perfect choice for miking in the engine compartment of cars or directly in the exhaust pipes.
Features:
- Exceptional audio quality
- Uniform, consistent sound between dpa mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 1 mV/Pa; -60 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 45 dB (max. 49 dB) |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 106 dB |
| Max. SPL, THD 10% | 154 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock |
| Color | Black |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
