DPA-4066-OP-A-F90-LH-S | 4066 CORE+ OMNI HEADSET MIC, BEIGE, MICROLOCK, SMALL

  • MAP: $925.00 / EA
  • List Price: $925.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

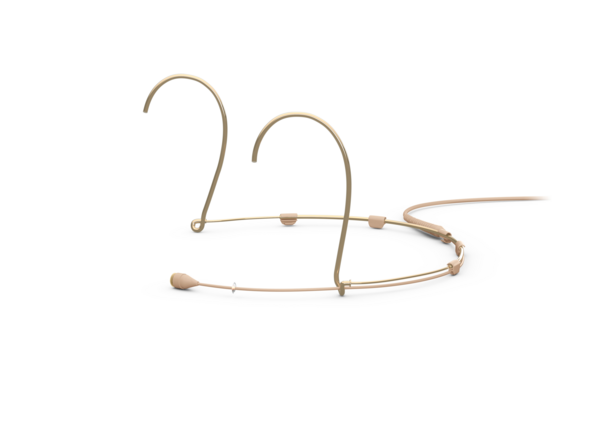

4066 CORE+ OMNI HEADSET MIC, BEIGE, MICROLOCK, SMALL
Click image to enlarge

DPA-4066-OP-A-F90-LH-S
4066 CORE+ OMNI HEADSET MIC, BEIGE, MICROLOCK, SMALL

  • UM : EA

This microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.

Features:

  • Resistant to humidity
  • Double-vent protection system
  • Available in three colors and three sizes
  • Modular adapter system fits most professional wireless systems
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dBSoft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz26 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1%136 dB SPL RMS, 139 dB SPL peak
Dynamic rangeTyp. 113 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedance30 - 40 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
ConnectorMicroLock
ColorBeige
Microphone diameter5.4 mm (0.21 in)
Cable length1.2 m (3.9 ft)
Cable diameter1.6 mm (0.06 in)
PolarityPositively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
