DPA-4080-DP-D-B03 | 4080 CORE+ CARDIOID MIC, NORMAL SPL, BLACK, 3-PIN LEMO
DPA-4080-DP-D-B03

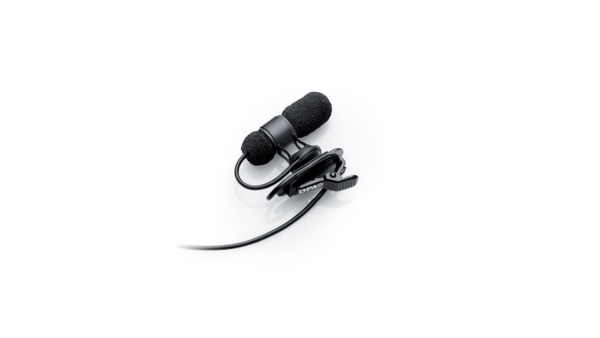

4080 CORE+ CARDIOID MIC, NORMAL SPL, BLACK, 3-PIN LEMO
Click image to enlarge
DPA-4080-DP-D-B03
4080 CORE+ CARDIOID MIC, NORMAL SPL, BLACK, 3-PIN LEMO
- UM : EA
While DPA's miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid lapel captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.
Features:
- Excellent speech reproduction with core+ technology
- Discreet, compact design
- Fits both left and right buttoned shirts
- Delivered with both black and white pop filters
- Modular adapter system fits most professional wireless systems
| Directional pattern | Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz) |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Distortion, THD < 0.5% | 127 dB SPL RMS, 130 dB SPL peak |
| Distortion, THD < 1% | 128 dB SPL RMS, 131 dB SPL peak |
| Dynamic range | Typ. 108 dB |
| Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD9001 XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter |
| Connector | 3-pin LEMO |
| Color | Black |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | 30 mm (1.2 in) |
| Cable length | 1.2 m (3.9 ft) |
| Cable color | Black |
| Cable diameter | 1.6 mm (0.06 in) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
