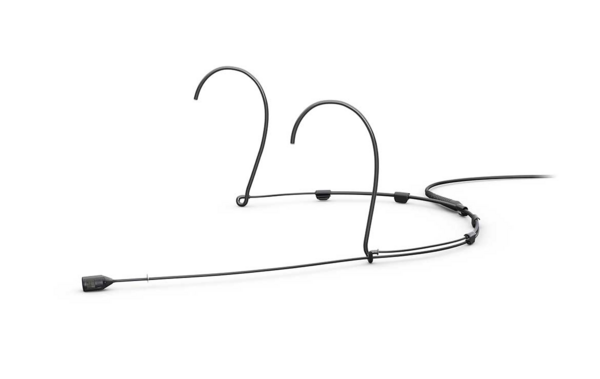

DPA-4088-DP-A-B34-LH | 4088 CORE+ DIRECTIONAL HEADSET MIC, BLACK, MINI-JACK

DPA-4088-DP-A-B34-LH
4088 CORE+ DIRECTIONAL HEADSET MIC, BLACK, MINI-JACK

MAP: $1,090.00 / EA
List Price: $1,090.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-4088-DP-A-B34-LH
4088 CORE+ DIRECTIONAL HEADSET MIC, BLACK, MINI-JACK

UM : EA

The classic 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.

Features:

Pristine audio quality with core+ technology
Lightweight and flexible
Easy mounting to the left or right
Resistant to humidity
Flexible adapter system fits most professional wireless systems

Directional pattern	Cardioid
Principle of operation	Pressure gradient
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in)	100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%	137 dB SPL RMS, 140 dB SPL peak
Distortion, THD < 1%	139 dB SPL RMS, 142 dB SPL peak
Dynamic range	Typ. 116 dB
Max. SPL, THD 10%	146 dB SPL peak
Rated output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD9001 XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Connector	Mini-Jack
Color	Black
Microphone diameter	5.4 mm (0.21 in)
Microphone length	11 mm (0.5 in)
Cable length	1.2 m (3.9 ft)
Cable diameter	1.6 mm (0.06 in)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
