DPA-4090 | 4090 OMNI MIC, NORM SPL, P48
DPA-4090

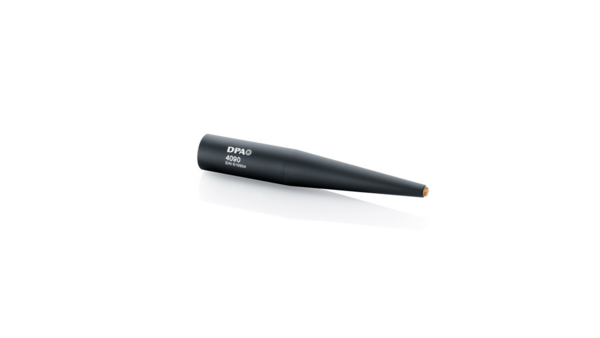

4090 OMNI MIC, NORM SPL, P48
Click image to enlarge
DPA-4090
4090 OMNI MIC, NORM SPL, P48
- UM : EA
This is a high-quality omnidirectional condenser microphone. Due to its uniquely natural and open sound, the 4090 is suitable for instrument-miking applications in the studio or on the stage.
Features:
- Natural and open sound
- For instrument miking in the studio or on the stage
- 4090: for acoustic guitar, strings, piano and wind instruments
- 4091: handles high-spl with ease
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | 20 Hz - 20 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 120 dB SPL RMS, 123 dB SPL peak |
| Dynamic range | Typ. 100 dB |
| Max. SPL, THD 10% | 134 dB SPL peak |
| Rated output impedance | < 40 Ω |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balanced |
| Common mode rejection ratio (CMRR) | > 40 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 2 mA |
| Connector | 3-pin XLR-M |
| Color | Black |
| Microphone diameter | 19 mm (0.75 in); at tip 6.7 mm (0.26 in) |
| Microphone length | 122 mm (4.8 in) |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
