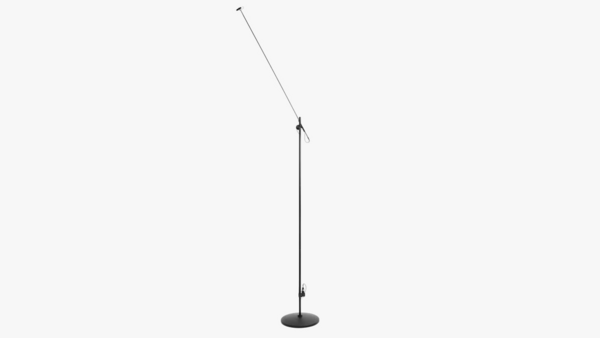

DPA-4097-DC-F-B01-120 | 4097 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, CHOIR MIC
DPA-4097-DC-F-B01-120
4097 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, CHOIR MIC
DPA-4097-DC-F-B01-120
4097 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, CHOIR MIC
- UM : EA
An inconspicuous floor stand solution specifically designed to capture the natural sound of a choir, the 4097 is unlike any Choir Mic available on the market. Each part of the solution has been specifically designed and tested to ensure it meets the needs of a wide range of choir situations. As a supercardioid mic, the 4097 offers a highly-directional pick-up pattern as well as low self noise and high sensitivity. The 4097 is capable of handling extremely high SPL’s which allows the mic to deliver undistorted natural sound, even when the choir sings loudly.
Features:
- Low noise and natural voice
- Highly directional for high isolation
- Uniform, frequency independent directionality
- Exclusive, elegant design
- Integrated shock-mounting in floor base
- Rapidly stabilizing microphone boom pole
- Modular flexibility
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 16 mV/Pa; -36 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic range | Typ. 110 dB |
| Max. SPL, THD 10% | 135 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD4099-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC XLR Adapter |
| Connector | MicroDot. XLR via supplied DAD4099-BC adapter |
| Color | Black |
| Maximum Total Height | 253 cm (100 in) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
