DPA-4097-DC-G-B00-010 | 4097 CORE MICRO SHOTGUN MIC, BLACK MICRODOT, 10 CM (4 IN) FULL GOOSENECK
DPA-4097-DC-G-B00-010

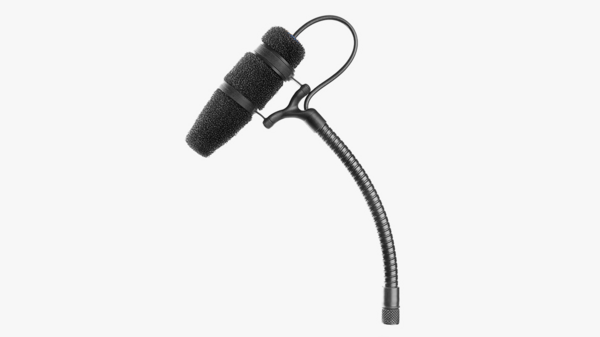

4097 CORE MICRO SHOTGUN MIC, BLACK MICRODOT, 10 CM (4 IN) FULL GOOSENECK
DPA-4097-DC-G-B00-010
4097 CORE MICRO SHOTGUN MIC, BLACK MICRODOT, 10 CM (4 IN) FULL GOOSENECK
- UM : EA
With its supercardioid polar plot, the 4097 CORE Micro Shotgun Mic offers a highly-directional pick-up pattern as well as low self noise and high sensitivity. The mic is capable of handling high SPLs, which allows it to deliver undistorted natural sound, even when users speak loudly or yell. With a linear response, low distortion and an extremely large dynamic range, it sounds great no matter how challenging the environment. In addition, dialog and background noise off to the side (off-axis) of the microphone preserves the audio quality; it just drops in level.
Features:
- Outstanding audio quality
- Wireless podium mic capability
- Highly directional – very isolated
- High rejection of tuner frequency interference
- Sleek scandinavian design
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 16 mV/Pa; -36 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic range | Typ. 110 dB |
| Max. SPL, THD 10% | 135 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD4099-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Color | Black |
| Microphone length | 10.4 cm (4 in) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
