DPA-4098-DC-D-W01-015 | 4098 CORE SUPERCARDIOID CEILING MIC, 16 CM (6 IN), WHITE, XLR, P48
DPA-4098-DC-D-W01-015
4098 CORE SUPERCARDIOID CEILING MIC, 16 CM (6 IN), WHITE, XLR, P48

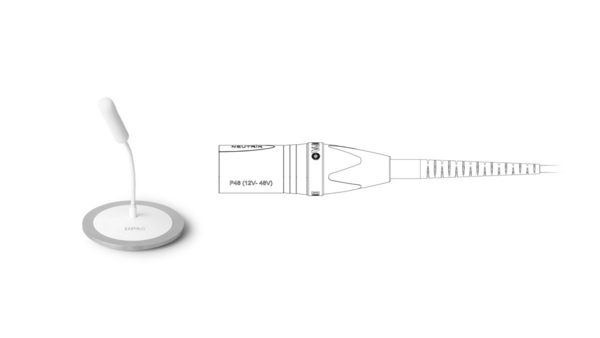

Click image to enlarge
DPA-4098-DC-D-W01-015
4098 CORE SUPERCARDIOID CEILING MIC, 16 CM (6 IN), WHITE, XLR, P48
- UM : EA
A complete, supercardioid ceiling microphone solution, which is ideal for mounting from the ceiling of conferences venues, meeting rooms, board rooms and other small to mid-sized spaces. This mic ensures maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, it sounds great in any environment.
Features:
- Outstanding audio quality
- Slim, elegant scandinavian design
- Highly directional – very isolated
- High rejection of tuner frequency interference
- Meets the needs of architects, av consultants, system integrators and installing electricians
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 16 mV/Pa; -36 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic range | Typ. 110 dB |
| Max. SPL, THD 10% | 135 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter XLR-3M: Up to 100 m (328 ft) |
| Output balance principle | Signal balanced with XLR connector or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or P48 (Phantom Power) with DAD6001-BC XLR adapter XLR-3M: P48 (Phantom Power) |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroDot or XLR-3M |
| Color | White |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in) XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in). |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
