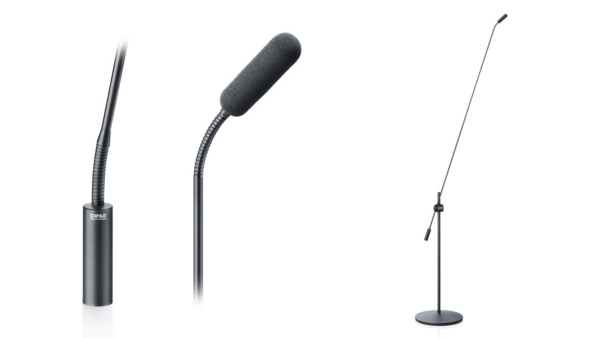

DPA-4098-DC-F-B01-120 | 4098 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, SINGLE MIC
DPA-4098-DC-F-B01-120
4098 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, SINGLE MIC
Click image to enlarge
DPA-4098-DC-F-B01-120
4098 CORE SUPERCARDIOID MIC, BLACK, XLR, 122 CM (48 IN) BOOM, FLOOR STAND, SINGLE MIC
- UM : EA
A complete cardioid microphone floor stand solution, offering a high-quality stage voice or instrument mic. With very low noise and a high sensitivity, DPA's supercardioid microphones offer the most clear, transparent, and natural sound available on the miniature mic market. The mics are capable of handling extremely high SPL before clipping. With a linear response, low distortion and an extremely large dynamic range, they sound great no matter how challenging the environment.
Features:
- Low noise and natural voice
- Highly directional for high isolation
- Uniform, frequency independent directionality
- Exclusive, elegant design
- Integrated shock-mounting in floor base
- Rapidly stabilizing microphone boom pole
- Modular flexibility
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 16 mV/Pa; -36 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| Distortion, THD < 1% | 130 dB SPL RMS, 133 dB SPL peak |
| Dynamic range | Typ. 110 dB |
| Max. SPL, THD 10% | 135 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter XLR-3M: Up to 100 m (328 ft) |
| Output balance principle | Signal balanced with XLR connector or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or P48 (Phantom Power) with DAD6001-BC XLR adapter XLR-3M: P48 (Phantom Power) |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroDot or XLR-3M |
| Color | Black |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in) XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in). |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
