DPA-4099-DC-2-199-T | 4099 CORE MIC, EXTREME SPL WITH CLIP FOR BRASS
DPA-4099-DC-2-199-T

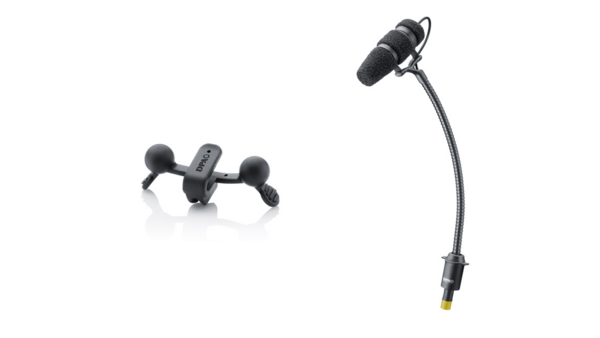

4099 CORE MIC, EXTREME SPL WITH CLIP FOR BRASS
Click image to enlarge
DPA-4099-DC-2-199-T
4099 CORE MIC, EXTREME SPL WITH CLIP FOR BRASS
- UM : EA
The 4099 CORE for Extreme SPL is perfect for trumpet, trombone and other brass instruments that can make a lot of sound. You can use it with or without mute. The microphone effortlessly handles even the highest sound pressure levels.
Features:
- Core by dpa technology inside
- Supercardioid condenser microphone
- Handles high spls
- Superior gain-before-feedback
- Flexible and easy mounting
- Gentle and easy to mount on the instrument
- Detachable cable and a versatile gooseneck extender
| Directional pattern | Supercardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB, at 20 cm (7.9 in) | 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 2 mV/Pa; -54 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A)) |
| Distortion, THD < 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic range | Typ. 109 dB |
| Max. SPL, THD 10% | 152 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter |
| Connector | MicroDot |
| Color | Black |
| Microphone diameter | 5.7 mm (0.22 in) |
| Microphone length | 45 mm (1.8 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable diameter | 1.6 mm (0.06 in) / 2.2 mm (0.09 in) |
| Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
| Gooseneck length | 140 mm (5.5 in) |
×
