DPA-4099-DP-1-101-P | 4099 CORE+ Mic, Loud SPL, Stereo System for Piano, 2 mics?

DPA-4099-DP-1-101-P
4099 CORE+ Mic, Loud SPL, Stereo System for Piano, 2 mics?

MAP: $1,535.00 / EA
List Price: $1,535.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-4099-DP-1-101-P
4099 CORE+ Mic, Loud SPL, Stereo System for Piano, 2 mics?

UM : EA

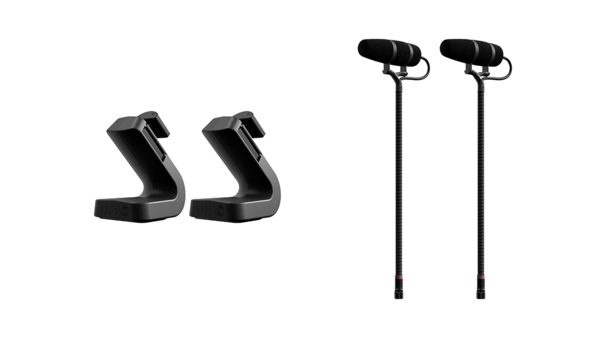

Pair of 4099 CORE+ selected on sensitivity within ±1.5 dB. Two included magnet mounts provide versatile, stable and repeatable positioning.

Features:

Core+ technology
High spl handling
Wide dynamic range
Supercardioid pick up pattern
Superior gain-before-feedback
Microlock connector
Ip58 certified
Advanced, flexible clip program

Directional pattern	Supercardioid
Principle of operation	Pressure gradient
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in)	80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Distortion, THD < 0.5%	135 dB SPL RMS, 138 dB SPL peak
Distortion, THD < 1%	138 dB SPL RMS, 141 dB SPL peak
Dynamic range	Typ. 118 dB
Max. SPL, THD 10%	145 dB SPL peak
Rated output impedance	From MicroLock: 30 - 40 Ω. From DAD9099 or DAD9001: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD9001/DAD9099 XLR Adapter
Output balance principle	Signal balanced with DAD9099 or DAD9001 XLR Adapter
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001 or DAD9099: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 or DAD9001 XLR Adapter
Connector	MicroLock
Color	Black
Microphone diameter	5.7 mm (0.22 in)
Microphone length	50 mm (1.97 in)
Cable length	1.8 m (5.9 ft)
Cable color	Black
Cable diameter	1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Polarity	+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
Gooseneck length	140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz)	±1 dB
