DPA-4166-OP-F-C90-LH | 4166 CORE+ OMNI FLEX HEADSET MIC, 110 MM BOOM, BROWN, MICROLOCK

DPA-4166-OP-F-C90-LH

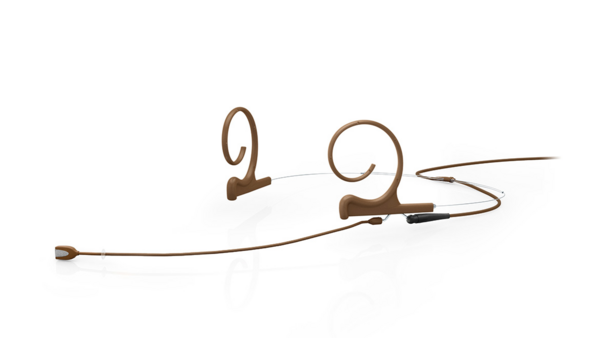

4166 CORE+ OMNI FLEX HEADSET MIC, 110 MM BOOM, BROWN, MICROLOCK

MAP: $1,035.00 / EA
List Price: $1,035.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-4166-OP-F-C90-LH
4166 CORE+ OMNI FLEX HEADSET MIC, 110 MM BOOM, BROWN, MICROLOCK

UM : EA

The 4166 CORE+ Headset Mic combines the Slim Omni Capsule on the Flex headset. It features the same capsule as the 4060 CORE+ Omnidirectional Miniature Microphone, but in a different housing.

Features:

Pristine audio quality with core+ technology
Microlock connector
Lightweight and flexible
Easy mounting to the left or right
Minimal visual impact
Resistant to humidity
Flexible adapter system fits most professional wireless systems

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±2 dB	40 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%	133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1%	136 dB SPL RMS, 139 dB SPL peak
Dynamic range	Typ. 113 dB
Max. SPL, THD 10%	144 dB SPL peak
Rated output impedance	From MicroLock: 30 - 40 Ω. From DAD9001: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD9001 XLR Adapter
Output balance principle	Signal balanced with DAD9001 XLR Adapter
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD9001 XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Connector	MicroLock
Color	Brown
Microphone diameter	5.4 mm (0.21 in)
Microphone length	Boom length: Normal: 120 mm (4.7 in), Medium: 100 mm (3.9 in)
Cable length	1.3 m (4.3 ft)
Cable color	Black
Cable diameter	1.6 mm (0.06 in)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroLock pin
Electromagnetic compatibility (EMC)	Fully compatible
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
