DPA-4188-DP-F-B90-LE | 4188 CORE+ DIRECTIONAL FLEX EARSET MIC, 120 MM BOOM, BLACK, MICROLOCK

DPA-4188-DP-F-B90-LE
4188 CORE+ DIRECTIONAL FLEX EARSET MIC, 120 MM BOOM, BLACK, MICROLOCK

MAP: $1,025.00 / EA
List Price: $1,025.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

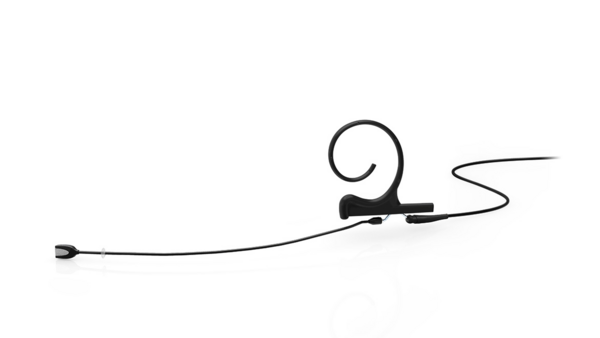

Click image to enlarge

DPA-4188-DP-F-B90-LE
4188 CORE+ DIRECTIONAL FLEX EARSET MIC, 120 MM BOOM, BLACK, MICROLOCK

UM : EA

The 4188 CORE+ Slim Earset Mic combines the sound of the 4088 directional capsule and a lightweight and flexible one-ear earset. It can be used when miking needs to be fast, easy, and where the person wearing the microphone won't feel the presence of it such as in conference, speech and powered live performance applications.

Features:

Pristine audio quality with core+ technology
Microlock connector
Lightweight and flexible
Easy mounting to the left or right
Minimal visual impact
Resistant to humidity
Flexible adapter system fits most professional wireless systems

Directional pattern	Cardioid
Principle of operation	Pressure gradient
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in)	100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%	137 dB SPL RMS, 140 dB SPL peak
Distortion, THD < 1%	139 dB SPL RMS, 142 dB SPL peak
Dynamic range	Typ. 116 dB
Max. SPL, THD 10%	146 dB SPL peak
Rated output impedance	From MicroLock: 30 - 40 Ω. From DAD9001: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD9001 XLR Adapter
Output balance principle	Signal balanced with DAD9001 XLR Adapter
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD9001 XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter
Connector	MicroLock
Color	Black
Microphone diameter	5.4 mm (0.21 in)
Cable length	1.3 m (4.3 ft)
Cable color	Black
Cable diameter	1.6 mm (0.06 in)
Polarity	+V at MicroLock pin for positive sound pressure (and pin 2 on DAD9001 XLR adapter)
Electromagnetic compatibility (EMC)	Fully compatible
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
