DPA-4188-DP-F-F90-LH | 4188 CORE+ DIRECTIONAL FLEX HEADSET MIC, 120 MM BOOM, BEIGE, MICROLOCK
DPA-4188-DP-F-F90-LH

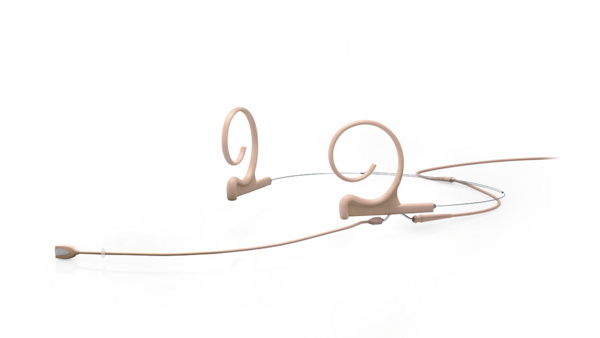

4188 CORE+ DIRECTIONAL FLEX HEADSET MIC, 120 MM BOOM, BEIGE, MICROLOCK
Click image to enlarge
DPA-4188-DP-F-F90-LH
4188 CORE+ DIRECTIONAL FLEX HEADSET MIC, 120 MM BOOM, BEIGE, MICROLOCK
- UM : EA
Combining the legendary sound of the 4088 CORE+ Directional Capsule with the lightweight headset system, the 4188 is ideal for both spoken word and vocal performance applications. It offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.
Features:
- Pristine audio quality with core+ technology
- Microlock connector
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
| Directional pattern | Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, Near field 2-3 cm (0.8 - 1.2 in) | 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 137 dB SPL RMS, 140 dB SPL peak |
| Distortion, THD < 1% | 139 dB SPL RMS, 142 dB SPL peak |
| Dynamic range | Typ. 116 dB |
| Max. SPL, THD 10% | 146 dB SPL peak |
| Rated output impedance | From MicroLock: 30 - 40 Ω. From DAD9001: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD9001 XLR Adapter |
| Output balance principle | Signal balanced with DAD9001 XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD9001 XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD9001: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD9001 XLR Adapter |
| Connector | MicroLock |
| Color | Beige |
| Microphone diameter | 5.4 mm (0.21 in) |
| Cable length | 1.3 m (4.3 ft) |
| Cable color | Beige |
| Cable diameter | 1.6 mm (0.06 in) |
| Polarity | +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9001 XLR adapter) |
| Electromagnetic compatibility (EMC) | Fully compatible |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
