DPA-4266-OP-F-B90-LE | 4266 CORE+ OMNI FLEX EARSET MIC, 110 MM BOOM, BLACK, MICROLOCK
DPA-4266-OP-F-B90-LE

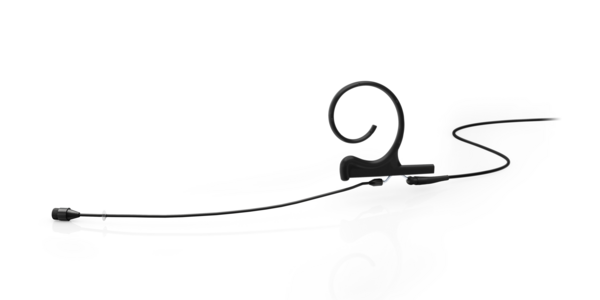

4266 CORE+ OMNI FLEX EARSET MIC, 110 MM BOOM, BLACK, MICROLOCK
Click image to enlarge
DPA-4266-OP-F-B90-LE
4266 CORE+ OMNI FLEX EARSET MIC, 110 MM BOOM, BLACK, MICROLOCK
- UM : EA
The 4266 Omnidirectional Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight and flexible single earset system. This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom. The capsule itself is the same type as the 4066.
Features:
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 113 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock |
| Color | Black |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.25 m (4.1 ft) |
| Cable color | Black, beige or brown |
| Cable diameter | 1.6 mm (0.06 in) |
| Polarity | Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
