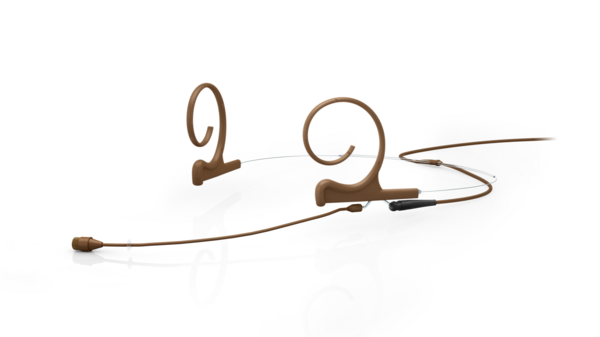

DPA-4266-OP-F-C90-MH | 4266 CORE+ OMNI FLEX HEADSET MIC, 90 MM BOOM, BROWN, MICROLOCK

DPA-4266-OP-F-C90-MH
4266 CORE+ OMNI FLEX HEADSET MIC, 90 MM BOOM, BROWN, MICROLOCK

MAP: $980.00 / EA
List Price: $980.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-4266-OP-F-C90-MH
4266 CORE+ OMNI FLEX HEADSET MIC, 90 MM BOOM, BROWN, MICROLOCK

UM : EA

The 4266 Omnidirectional Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight and flexible headset system. This condenser mic is easy and fast to adjust and it offers clean and transparent sound quality with lots of headroom. The capsule itself is the same type as the 4066, but is attached to an interchangeable boom arm.

Features:

Pristine audio quality
Lightweight and flexible
Easy mounting to the left or right
Minimal visual impact
Resistant to humidity
Flexible adapter system fits most professional wireless systems

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±2 dB	Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%	133 dB SPL RMS, 136 dB SPL peak
Distortion, THD < 1%	136 dB SPL RMS, 139 dB SPL peak
Dynamic range	Typ. 113 dB
Max. SPL, THD 10%	144 dB SPL peak
Rated output impedance	From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Output balance principle	Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector	MicroLock
Color	Brown
Microphone diameter	5.4 mm (0.21 in)
Microphone length	12.7 mm (0.5 in)
Cable length	1.25 m (4.1 ft)
Cable color	Black, beige or brown
Cable diameter	1.6 mm (0.06 in)
Polarity	Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD6001-BC XLR adapter)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
