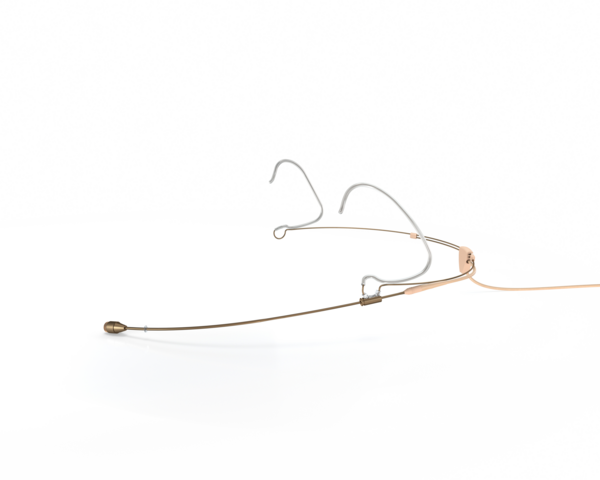

DPA-4466-OP-R-F10 | 4466 CORE+ OMNI HEADSET MIC, BEIGE, TA4F MINI-XLR
DPA-4466-OP-R-F10
4466 CORE+ OMNI HEADSET MIC, BEIGE, TA4F MINI-XLR
DPA-4466-OP-R-F10
4466 CORE+ OMNI HEADSET MIC, BEIGE, TA4F MINI-XLR
- UM : EA
The 4466 CORE+ Omnidirectional Headset Microphone combines DPA’s renowned 5 mm capsules with CORE+ by DPA technology and the Red Dot award-winning headset.
These are the most advanced headsets – secure, durable and flexible – for segments including: Theatre, Broadcast, House of Worship and Conferencing.
This omni mic offers clean and transparent sound quality with lots of headroom. The microphone’s sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. When powered correctly, the microphone will be able to handle very high sound pressure levels up to 134 dB SPL so users can both speak and sing into the mic with no hint of distortion. The max SPL handling is an impressive 144 dB.
Features:
- One-size-fits-all - head sizes and shapes
- Comfortable 3-point grip - above, below, behind the ear
- Easily adjustable - frame size, boom length, placement
- 90° adjustable cable guide - keeps cable out of sight
- Non-reflective pvd surface on headset frame, boom, capsule
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 113 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | TA4F Mini-XLR |
| Color | Beige |
| Microphone diameter | 5.4 mm (0.21 in) |
| Cable length | 1.3 m (4.3 ft) |
| Cable diameter | 1.6 mm (0.06 in) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
