DPA-4661-OP-H-F90 | 4661 CORE+ HEAVY DUTY OMNI MIC, LOUD SPL, BEIGE, MICROLOCK
DPA-4661-OP-H-F90

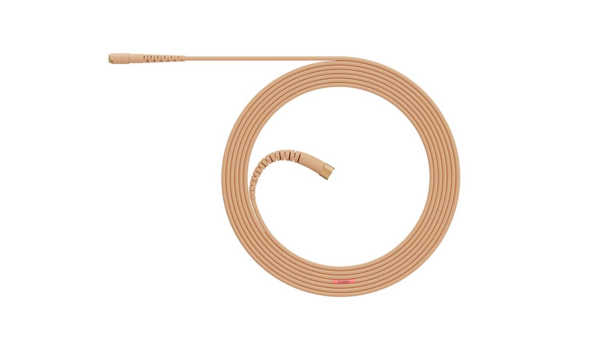

4661 CORE+ HEAVY DUTY OMNI MIC, LOUD SPL, BEIGE, MICROLOCK
Click image to enlarge
DPA-4661-OP-H-F90
4661 CORE+ HEAVY DUTY OMNI MIC, LOUD SPL, BEIGE, MICROLOCK
- UM : EA
Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty 4661 features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. Our Heavy Duty microphones are a more robust version of the original mics they are based upon.
Features:
- The most rugged and reliable version of dpa miniatures
- Stainless steel housing, heavy-duty strain relief and thick cable
- Exceptional audio quality
- Uniform, consistent sound between dpa mics
- Sturdy but small for flexible and easy concealment
- Modular adapter system fits most professional wireless systems
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| Distortion, THD < 0.5% | 133 dB SPL RMS, 136 dB SPL peak |
| Distortion, THD < 1% | 136 dB SPL RMS, 139 dB SPL peak |
| Dynamic range | Typ. 113 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock |
| Color | Beige |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 17.6 mm (0.7 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable color | Black or beige |
| Cable diameter | 2.2 mm (0.09 in) |
| Polarity | Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD6001-BC XLR adapter) |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
