DPA-5100 | 5100 MOBILE 5.1 SURROUND MIC
DPA-5100

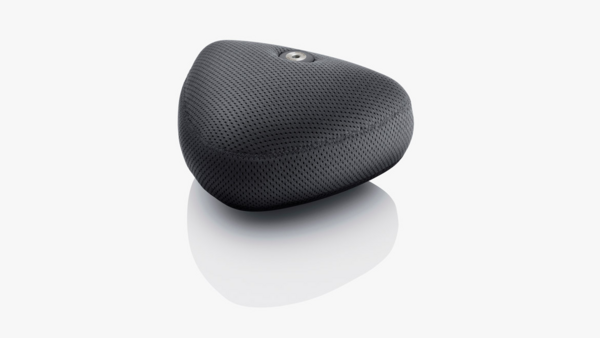

5100 MOBILE 5.1 SURROUND MIC
Click image to enlarge
DPA-5100
5100 MOBILE 5.1 SURROUND MIC
- UM : EA
The 5100 Mobile Surround Microphone is a completely self-contained plug-and-play solution for 5.1 audio capture. It brings engaging surround ambience to sport events, documentaries and other HDTV productions. This microphone is versatile and can be mounted in many ways:, microphone stand, suspended from the ceiling or via a handgrip. It is lightweight and portable. It can also withstand inclement weather conditions due to its robust nature.
Features:
- Plug-and-play solution
- Compact, lightweight and portable
- Rich, smooth and fully enveloping sound
- Discrete 5.1 analog output – no processing needed
| Directional pattern | Directional |
|---|---|
| Principle of operation | Pressure, with interferece tube and separation baffles |
| Cartridge type | Pre-polarized condenser element |
| Frequency response | L, C, R, LS, RS: 20 Hz to 20 kHz; LFE: 20 Hz to 120 Hz |
| Effective frequency range ±2 dB | L, C, R: 200 Hz to 16 kHz; LS, RS: 100 Hz to 12 kHz; LFE: 20 Hz to 120 Hz |
| Sensitivity, nominal, ±3 dB at 1 kHz2 | L, C, R: 26 mV/Pa; LS, RS: 28 mV/Pa |
| Equivalent noise level, A-weighted | L, C, R: Typ. 18 dB(A) (max. 21 dB(A)); LS, RS: Typ. 20 dB(A) (max. 23 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | L, C, R: Typ. 29 dB (max. 32 dB); LS, RS: Typ. 31 dB (max. 34 dB) |
| Distortion, THD < 1% | 120 dB SPL RMS, 123 dB SPL peak |
| Dynamic range | L, C, R, LS, RS: 103 dB; LFE: 100 dB |
| Max. SPL, THD 10% | 132 dB SPL peak |
| Rated output impedance | 50 Ω |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | powered Signal balanced |
| Common mode rejection ratio (CMRR) | 60 dB, 50 Hz - 20 kHz |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | Typ. 5 mA (max. 5.5 mA) |
| Connector | Lemo multipin |
| Color | Black |
| Microphone diameter | W: 240 mm (9.4 in), H: 140 mm (5.5 in), D: 195 mm (7.7 in) |
| Capsule diameter | 5.4 mm (0.21 in) |
| Cable length | 5 m (16.4 ft) |
| Cable color | Black |
| Cable diameter | 9.3 mm (0.37 in) |
| Maximum output voltage | L, C, R, LS, RS: 1,8 Vrms / 2,5 Vpeak; LFE: 1 Vrms / 1,4 Vpeak |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
