DPA-6061-OC-U-B10 | 6061 CORE OMNI SUBMINI MIC, LOUD SPL, BLACK, TA4F MINI-XLR

  • MAP: $795.00 / EA
  • List Price: $795.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

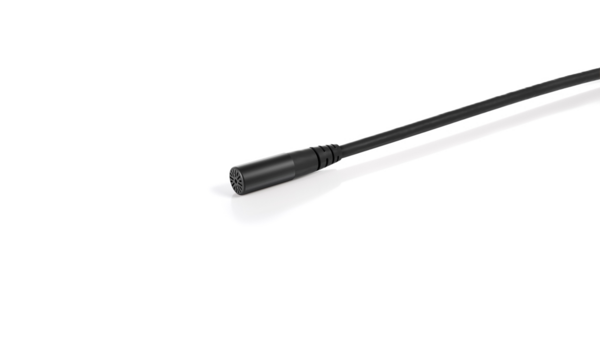

6061 CORE OMNI SUBMINI MIC, LOUD SPL, BLACK, TA4F MINI-XLR
Click image to enlarge

DPA-6061-OC-U-B10
6061 CORE OMNI SUBMINI MIC, LOUD SPL, BLACK, TA4F MINI-XLR

  • UM : EA

6061 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of DPA's larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability – three qualities that really matter. In terms of technical , the 6061 has a noise floor of only 26 dB(A), which is on par with the 5 mm (0.20 in) DPA miniature capsules.

Features:

  • Exceptional audio quality
  • Uniform, consistent sound between dpa mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dB40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
Sensitivity, nominal, ±2.4 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 26 dB(A) re. 20 μPa (max. 28 dB(A))
Distortion, THD < 0.5%122 dB SPL RMS, 125 dB SPL peak
Distortion, THD < 1%125 dB SPL RMS, 128 dB SPL peak
Dynamic rangeTyp. 102 dB
Max. SPL, THD 10%144 dB SPL peak
Rated output impedanceFrom MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR adapter
Power supply (for full performance)For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
ConnectorTA4F Mini-XLR
ColorBlack
Microphone head size (h x w x d)3.4 / 14.4 mm (0.13 / 0.57 in)
Capsule diameter3 mm (0.12 in)
Cable length1.8 m (5.9 ft)
PolarityPositively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
