DPA-6066-OC-R-C03 | 6066 CORE OMNI HEADSET MIC, BROWN, 3 PIN LEMO
DPA-6066-OC-R-C03

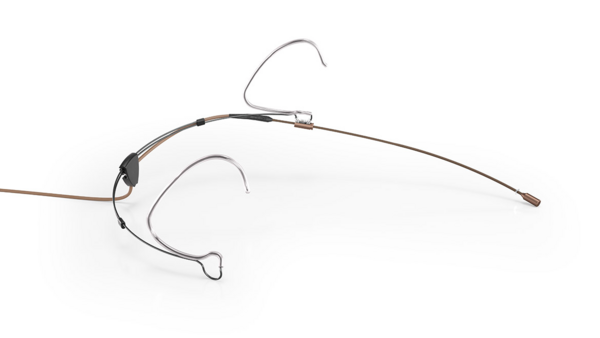

6066 CORE OMNI HEADSET MIC, BROWN, 3 PIN LEMO
Click image to enlarge
DPA-6066-OC-R-C03
6066 CORE OMNI HEADSET MIC, BROWN, 3 PIN LEMO
- UM : EA
The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking DPA's newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.
Features:
- Amazing 3 mm core by dpa capsules technology
- Renowned dpa sound in a 60% smaller capsule
- One-size-fits-all, headset fits securely and comfortably
- 2-way adjustable, non-reflective boom with locking system
- Unique, comfortable 3-point gripping system above, below and behind the ear
- New 90° cable management constructed to guide the cable and minimize cable breaks
| Directional pattern | Omnidirectional |
|---|---|
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range ±2 dB | 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz |
| Sensitivity, nominal, ±2.4 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A)) |
| Distortion, THD < 0.5% | 122 dB SPL RMS, 125 dB SPL peak |
| Distortion, THD < 1% | 125 dB SPL RMS, 128 dB SPL peak |
| Dynamic range | Typ. 102 dB |
| Max. SPL, THD 10% | 144 dB SPL peak |
| Rated output impedance | From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR adapter |
| Power supply (for full performance) | For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | 3-pin LEMO |
| Color | Brown |
| Microphone head size (h x w x d) | 3.4 / 8.9 mm (0.13 / 0.35 in) |
| Capsule diameter | 3 mm (0.12 in) |
| Cable length | 1.3 m (4.3 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroLock pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
