DPA-KIT-4060-OP-SMK | 4060 CORE+ STEREO MICROPHONE KIT

  • MAP: $1,495.00 / EA
  • List Price: $1,495.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

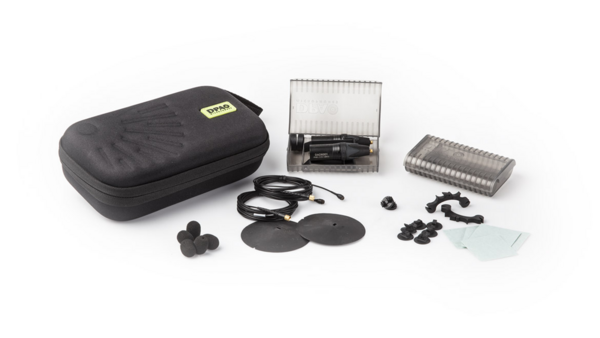

4060 CORE+ STEREO MICROPHONE KIT
Click image to enlarge

DPA-KIT-4060-OP-SMK
4060 CORE+ STEREO MICROPHONE KIT

  • UM : EA

We have collected DPA's award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

Features:

  • Extremely rugged and reliable
  • Exceptional audio quality
  • Low noise and high sensitivity
  • Large selection of accessories
  • Modular adapter system fits most professional wireless systems
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response20 Hz - 20 kHz
Effective frequency range ±2 dBSoft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz220 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 35 dB (max. 38 dB)
Distortion, THD < 0.5%128 dB SPL RMS, 131 dB SPL peak
Distortion, THD < 1%129 dB SPL RMS, 132 dB SPL peak
Dynamic rangeTyp. 109 dB
Max. SPL, THD 10%134 dB SPL peak
Rated output impedance30 - 40 Ω
Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
ConnectorMicroLock
ColorBlack, beige, brown or white
Microphone diameter5.4 mm (0.21 in)
Microphone length12.7 mm (0.5 in)
Cable length1.8 m (5.9 ft)
PolarityPositively increasing sound pressure produces positive going voltage on MicroLock pin
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Sensitivity selection tolerance (at 1 kHz)±1.5 dB
