DPA-KIT-4097-DC-INK | 4097 CORE INTERVIEW KIT

DPA-KIT-4097-DC-INK
4097 CORE INTERVIEW KIT

MAP: $715.00 / EA
List Price: $715.00 / EA
Log in to see if custom discounts apply
Case Quantity: 1
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

DPA-KIT-4097-DC-INK
4097 CORE INTERVIEW KIT

UM : EA

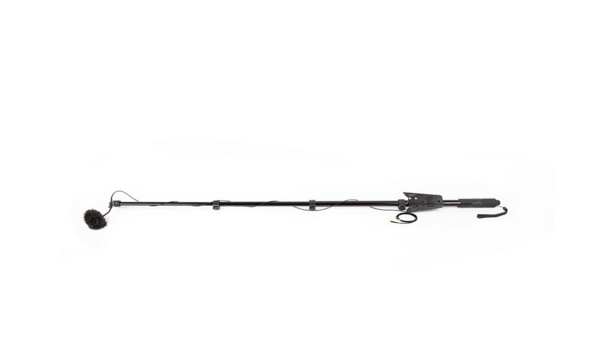

The 4097 CORE Interview Kit makes it easy to deliver great sound in challenging situations. It contains a 4097 CORE Shotgun Microphone, which shines in outdoor locations, handling inclement weather and limiting intrusive background noises. It’s a professional solution for professional broadcasters, who need amazing sound in a lightweight, small-footprint form factor.

Features:

Extremely rugged and reliable
Enhances speech intelligibility
Resistant to moisture, extreme temperatures and humidity
Built-in shock mount for stability even in difficult situations
Available with 10+ mounting options for flexibility
Modular adapter system fits most professional wireless systems

Directional pattern	Supercardioid
Principle of operation	Pressure gradient
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in)	80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz2	16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 23 dB(A) re. 20 µPa (max 26 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 35 dB (max. 38 dB)
Distortion, THD < 1%	130 dB SPL RMS, 133 dB SPL peak
Dynamic range	Typ. 110 dB
Max. SPL, THD 10%	135 dB SPL peak
Rated output impedance	From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD4099-BC XLR Adapter
Common mode rejection ratio (CMRR)	> 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter
Power supply (for full performance)	For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector	MicroDot
Color	Black
Microphone length	10.4 cm (4 in)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
