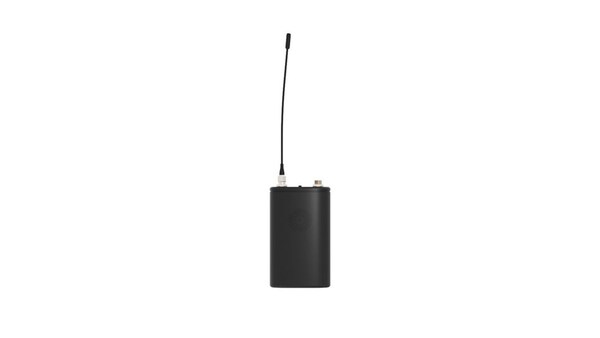

DPA-N-BP1-03-B | N-SERIES BODYPACK TRANSMITTER, 3-PIN LEMO
DPA-N-BP1-03-B
N-SERIES BODYPACK TRANSMITTER, 3-PIN LEMO
DPA-N-BP1-03-B
N-SERIES BODYPACK TRANSMITTER, 3-PIN LEMO
- UM : EA
N-Series uniquely designed bodypack transmitters are lightweight and formed to match the contours of the human body for comfortable long-term use.
Specifications
RF Tuning Steps 25 kHz
Battery Runtime at 10 mW >8 hours
RF Frequency Range 470 - 870 MHz (Varies by region)
Audio Input Impedance
MicroLock, N-BP1-90 - 5 k?
LEMO 3-pin, N-BP1-03 - 5 k?
RF Sensitivity -96 dBm at 10^-5 BER
Audio Polarity Positively increasing sound pressure produces positive going voltage on relevant audio outputs
Radio Frequency Power 1 mW, 5 mW, 10 mW, 20 mW, 50 mW (follows region)
Working Range 100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
Audio Dynamic Range (system) analog 126 dB
Audio Dynamic Range (system) Digital 126 dB
Digital Audio Trim -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
Audio Bias Voltage 5 Volts DC
Latency <2.9 ms
Radio Frequency Bandwidth 470 - 870 MHz (follows region)
Max Input Level < 1% THD @ 1 kHz 1,8 Vrms
Housing Type Zink alloy
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 50°C (4°F to 122°F) Without batteries installed
Dimension (H x W x D) 87 mm (3.4 in) x 53 mm (2.1 in) x 24 mm (0,9 in)
Audio Frequency Response 20 - 20 kHz (±1 dB)
Antenna Type 1/4 wave
Occupied Bandwidth < 200 kHz
Battery Type LR6 AA batteries
Audio Input Connector
MicroLock, N-BP1-90 - 2-wire input
LEMO 3-pin, N-BP1-03 - 2 and 3-wire input
Antenna Connector Type SMA
Frequency response 20 - 20 kHz (±1 dB)
Weight 153 g (5.4 oz)
