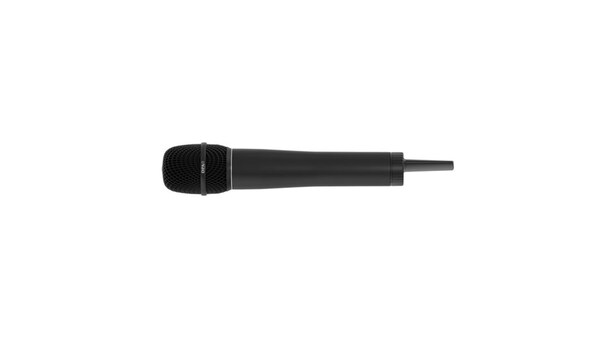

DPA-N-HH1-SL1-B-4018V | N-SERIES HANDHELD TRANSMITTER W. 4018V SOFTBOOST VOCAL MICROPHONE
DPA-N-HH1-SL1-B-4018V
N-SERIES HANDHELD TRANSMITTER W. 4018V SOFTBOOST VOCAL MICROPHONE
DPA-N-HH1-SL1-B-4018V
N-SERIES HANDHELD TRANSMITTER W. 4018V SOFTBOOST VOCAL MICROPHONE
- UM : EA
N-Series is best used with DPA’s high-end vocal microphone capsules. There is a range of capsules available depending on the needs of your vocalists.
d:facto™ 4018V Softboost Vocal Microphone
Specifications
RF Tuning Steps 25 kHz
Battery Runtime at 10 mW >7 hours
RF Frequency Range 470 - 870 MHz (Varies by region)
Audio Input Impedance 10 k?
RF Sensitivity -96 dBm at 10^-5 BER
Audio Polarity Positively increasing sound pressure produces positive going voltage on relevant audio outputs
Radio Frequency Power 1 mW, 5 mW, 10 mW, 20 mW, 50 mW (follows region)
Working Range 100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
Audio Dynamic Range (system) analog 126 dB
Audio Dynamic Range (system) Digital 126 dB
Digital Audio Trim -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
Latency<2.9 ms
Audio Input Interface Type SL1
Radio Frequency Bandwidth 470 - 870 MHz (follows region)
Housing Type Zink alloy
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 50°C (4°F to 122°F) Without batteries installed
Audio Frequency Response 20 - 20 kHz (±1 dB)
Occupied Bandwidth < 200 kHz
Battery Type LR6 AA batteries
Directional pattern Supercardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 12 cm (4.7 in) 100 Hz - 16 kHz. Permanent 1st order low-cut filter at 40 Hz, Selectable 2. order low-cut at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz 5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))
Distortion, THD < 1% 144 dB SPL RMS, 147 dB SPL peak
Dynamic range Typ. 125 dB
Max. SPL, THD 10% 149 dB SPL peak
Weight 373 g (13.2 oz)
Microphone diameter 48 mm (1.9 in)
Microphone length 266 mm (10.5 in)
Capsule diameter 19 mm (0.75 in)
Polarity +V at output for positive sound pressure
