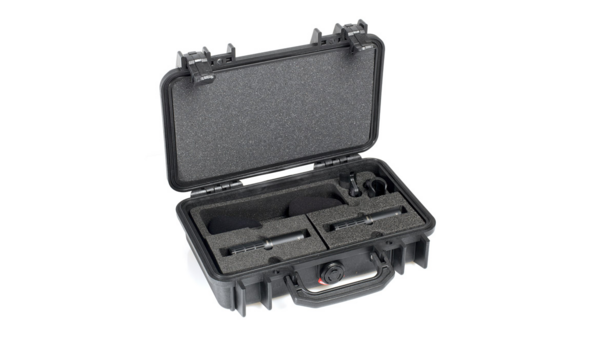

DPA-ST2011C | 2011C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE

  • MAP: $2,385.00 / EA
  • List Price: $2,385.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
2011C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE
Click image to enlarge

DPA-ST2011C
2011C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE

  • UM : EA

The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.

Features:

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 db dynamic range
  • Rf rejection between >60 and >40 db
  • Linear frequency response
  • High spl
  • Superior gain before feedback
Directional patternCardioid
Principle of operationPressure gradient, with interference tube
Cartridge typePre-polarized condenser, Twin Diaphragm Capsule
Frequency response20 Hz - 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in)50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±2 dB at 1 kHz10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 33 dB (max. 36 dB)
Distortion, THD < 1%134 dB SPL RMS, 137 dB SPL peak
Dynamic rangeTyp. 117 dB
Max. SPL, THD 10%146 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 50 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter19 mm (0.75 in)
Microphone length92 mm (3.6 in)
Maximum output voltage, RMS> 4 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Sensitivity selection tolerance (at 1 kHz)±1.5 dB
