DPA-ST2012 | 2012 STEREO PAIR WITH HOLDERS AND WINDSCREENS
DPA-ST2012

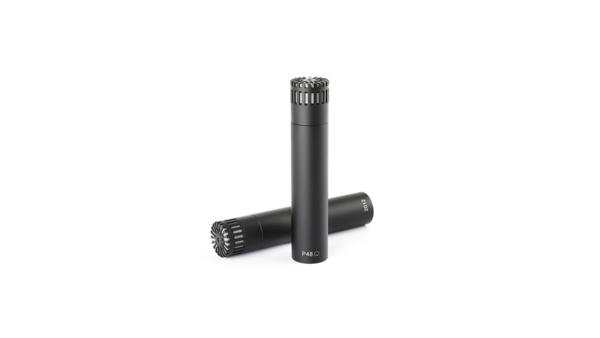

2012 STEREO PAIR WITH HOLDERS AND WINDSCREENS
Click image to enlarge
DPA-ST2012
2012 STEREO PAIR WITH HOLDERS AND WINDSCREENS
- UM : EA
Close miking in stereo in an extremely loud environment is a challenge, but with a 2012 Cardioid Mic Stereo Pair, you can rest assured that you will capture all the details no matter the sound pressure level. With a max SPL, peak before clipping of 156 dB, the 2012 works well on even the loudest instruments.
Features:
- Selected with +/-1,5 db tolerance
| Directional pattern | Cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz to 20 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 8 mV/Pa |
| Equivalent noise level, A-weighted | Typ. 20 dB(A) re 20 µPa (max. 22 dB(A)) |
| Distortion, THD < 1% | 148 dB SPL, 151 dB SPL peak |
| Dynamic range | Typ. 131 dB |
| Max. SPL, THD 10% | 156 dB SPL peak |
| Rated output impedance | 60 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with powered Drive |
| Common mode rejection ratio (CMRR) | > 60 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 0.7 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Black |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 17 mm (0.67 in) |
| Microphone length | 94 mm (3.7 in) |
| Maximum output voltage, RMS | 8.7 V (21 dBu) |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
