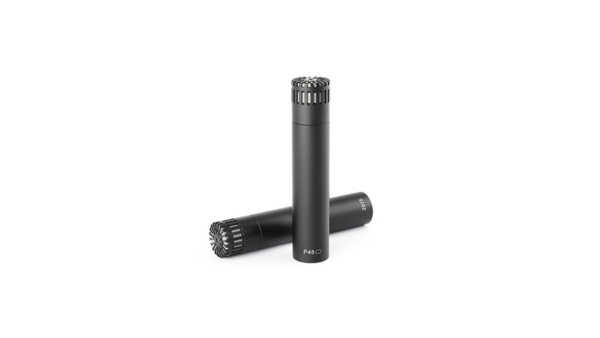

DPA-ST2015 | 2015 STEREO PAIR WITH HOLDERS AND WINDSCREENS
DPA-ST2015
2015 STEREO PAIR WITH HOLDERS AND WINDSCREENS
Click image to enlarge
DPA-ST2015
2015 STEREO PAIR WITH HOLDERS AND WINDSCREENS
- UM : EA
Placing a 2015 Stereo Pair on the stage captures the spaciousness and natural sound of the drum kit or other instrument group. This pair of selected wide cardioid overhead mics are designed for transparent ambient pick up and provide exceptionally natural and precise sound reproduction.
Features:
- Selected with +/-1,5 db tolerance
| Directional pattern | Wide cardioid |
|---|---|
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarized condenser |
| Frequency response | 20 Hz - 20 kHz |
| Effective frequency range, ±2 dB, at 30 cm (11.8 in) | 40 Hz to 18 kHz |
| Sensitivity, nominal, ±2 dB at 1 kHz | 12 mV/Pa |
| Equivalent noise level, A-weighted | Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A)) |
| Distortion, THD < 1% | 147 dB SPL, 150 dB SPL peak |
| Dynamic range | Typ. 132 dB |
| Max. SPL, THD 10% | 153 dB SPL peak |
| Rated output impedance | 60 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with powered Drive |
| Common mode rejection ratio (CMRR) | > 60 dB |
| Power supply (for full performance) | P48 (Phantom Power) |
| Current consumption | 0.7 mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color | Black |
| Microphone diameter | 19 mm (0.75 in) |
| Capsule diameter | 17 mm (0.67 in) |
| Microphone length | 94 mm (3.7 in) |
| Maximum output voltage, RMS | 8.7 V (21 dBu) |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
×
