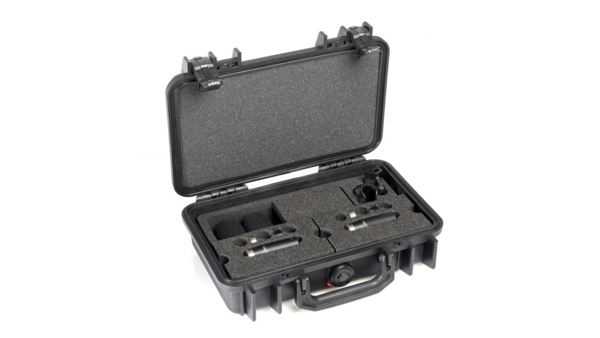

DPA-ST4006C | 4006C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE

  • MAP: $5,620.00 / EA
  • List Price: $5,620.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
4006C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE
Click image to enlarge

DPA-ST4006C
4006C STEREO PAIR WITH CLIPS AND WINDSCREENS IN PELI CASE

  • UM : EA

The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.

Features:

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 db dynamic range
  • Rf rejection between >60 and >40 db
  • Linear frequency response
  • High spl
  • Superior gain before feedback
Directional patternOmnidirectional
Principle of operationPressure
Cartridge typePre-polarized condenser
Frequency response10 Hz - 20 kHz
Effective frequency range ±2 dB20 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz36 mV/Pa; -28,9 dB re. 1 V/Pa
Equivalent noise level, A-weightedTyp. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4Typ. 27 dB (max. 29 dB)
Distortion, THD < 1%128 dB SPL RMS, 131 dB SPL peak
Dynamic rangeTyp. 116 dB
Max. SPL, THD 10%139 dB SPL peak
Rated output impedance100 Ω
Minimum load impedance2 kΩ
Cable drive capability100 m (328 ft)
Output balance principleImpedance balancing with powered Drive
Common mode rejection ratio (CMRR)> 50 dB
Power supply (for full performance)P48 (Phantom Power)
Current consumption2.8 mA
ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
ColorMatte black
Microphone diameter16 - 19 mm (0.6 - 0.75 in)
Capsule diameter16 mm (0.6 in)
Microphone length64 mm (2.5 in)
Maximum output voltage, RMS4.5 V
Polarity+V at pin 2 for positive sound pressure
Temperature range-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)Up to 90%
Matching tolerance (frequency response and sensitivity)±0.5 dB
Phase deviation for kit< 5°
