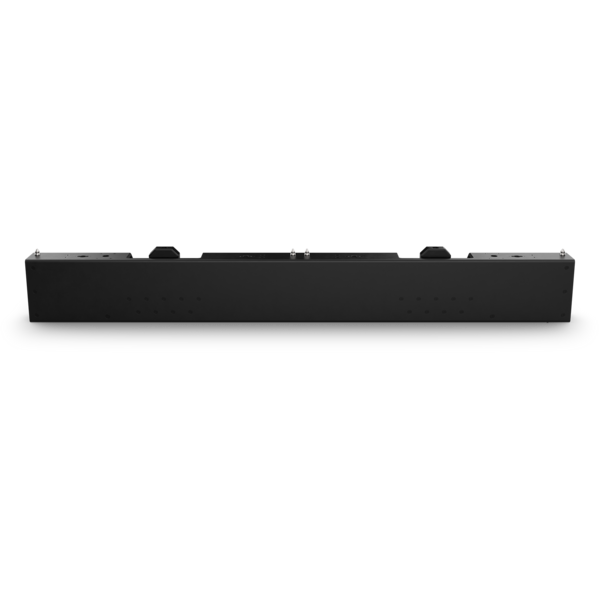

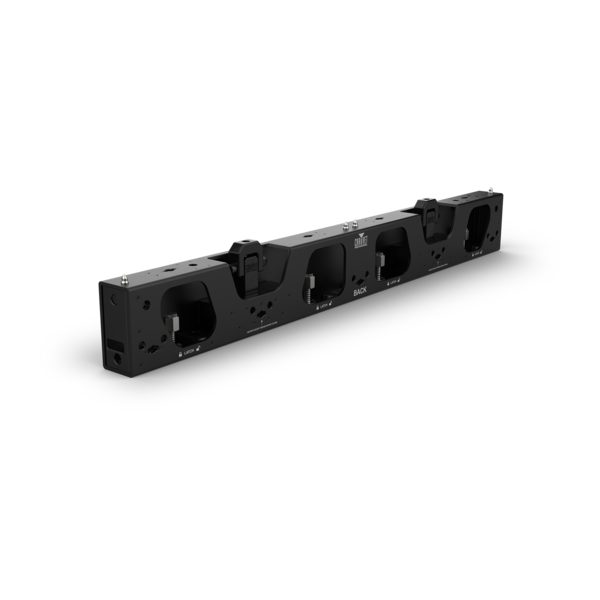

DRBF100CMIP
IP65-RATED RIG BARS, USED TO HANG VIDEO WALL OVERHEAD
Click image to enlarge
DRBF100CMIP
IP65-RATED RIG BARS, USED TO HANG VIDEO WALL OVERHEAD
- UM : EA
- Estimated Weight: 26.0
DRB-F100CMIP and DRB-F50CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.
Features:
- Provides flexible mounting options for hanging panels either vertically or horizontally.
- Designed for seamless integration with F2, F3X, F5IP, and F4XIP video panels.
- Features a rugged, IP65-rated construction for reliable all-weather use.
- Equipped with a hoist ring that accommodates standard 1/2-inch and 5/8-inch shackles.
- Includes a clamp attachment bracket for direct connection to truss with M12 bolts.
- Adapts for ground stacking applications with the addition of the GROUNDSUPPORT2KIT.
| Dimensions | 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm) |
|---|---|
| Weight | 15.4 lb (7.0 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum extrusion, stainless steel |
| Certifications | ROHS |
| IP Rating | IP65, temporary outdoor/wet use |
×
×
